Extra

This is an extra component to 5 steps to n-body simulation. I figured some of you may be interested in the visuals, so in this section, I will show you how to make 3D plots and produce animations using the matplotlib library.

Plotting in 3D

It would be nice to plot the trajectory in 3D. To do this, we will need two functions, one to set the 3D axes limits in equal aspect ratio, and one to plot the trajectory in 3D.

Code (Click to expand)

common.py

def set_3d_axes_equal(ax: plt.Axes) -> None:
    """
    Make axes of 3D plot have equal scale

    Parameters
    ----------
    ax : matplotlib axis
        The axis to set equal scale

    Reference
    ---------
    karlo, https://stackoverflow.com/questions/13685386/how-to-set-the-equal-aspect-ratio-for-all-axes-x-y-z
    """

    x_limits = ax.get_xlim3d()  # type: ignore
    y_limits = ax.get_ylim3d()  # type: ignore
    z_limits = ax.get_zlim3d()  # type: ignore

    x_range = abs(x_limits[1] - x_limits[0])
    x_middle = np.mean(x_limits)
    y_range = abs(y_limits[1] - y_limits[0])
    y_middle = np.mean(y_limits)
    z_range = abs(z_limits[1] - z_limits[0])
    z_middle = np.mean(z_limits)

    # The plot bounding box is a sphere in the sense of the infinity
    # norm, hence I call half the max range the plot radius.
    plot_radius = 0.5 * max([x_range, y_range, z_range])

    ax.set_xlim3d([x_middle - plot_radius, x_middle + plot_radius])  # type: ignore
    ax.set_ylim3d([y_middle - plot_radius, y_middle + plot_radius])  # type: ignore
    ax.set_zlim3d([z_middle - plot_radius, z_middle + plot_radius])  # type: ignore


def plot_3d_trajectory(
    sol_x: np.ndarray,
    labels: list,
    colors: list,
    legend: bool,
) -> None:
    """
    Plot the 3D trajectory.

    Parameters
    ----------
    sol_x : np.ndarray
        Solution position array with shape (N_steps, num_particles, 3).
    labels : list
        List of labels for the particles.
    colors : list
        List of colors for the particles.
    legend : bool
        Whether to show the legend.
    """

    fig = plt.figure()
    ax = fig.add_subplot(111, projection="3d")
    ax.set_xlabel("$x$ (AU)")
    ax.set_ylabel("$y$ (AU)")
    ax.set_zlabel("$z$ (AU)")  # type: ignore

    for i in range(sol_x.shape[1]):
        traj = ax.plot(
            sol_x[:, i, 0],
            sol_x[:, i, 1],
            sol_x[:, i, 2],
            color=colors[i],
        )
        # Plot the last position with marker
        ax.scatter(
            sol_x[-1, i, 0],
            sol_x[-1, i, 1],
            sol_x[-1, i, 2],
            marker="o",
            color=traj[0].get_color(),
            label=labels[i],
        )

    set_3d_axes_equal(ax)

    if legend:
        ax.legend(loc="center right", bbox_to_anchor=(1.325, 0.5))
        fig.subplots_adjust(right=0.7)

    plt.show()

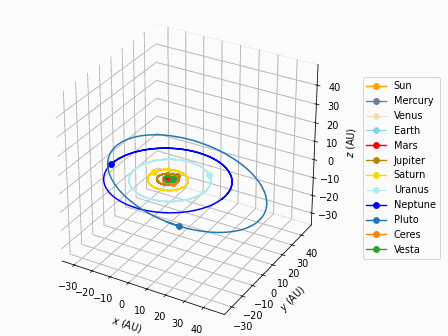

To make the plot look better, I added a few dwarf planets like Pluto. The initial condition is already available in the get_initial_conditions function (input solar_system_plus). In step 4 or step 5, change plot_2d_trajectory to plot_3d_trajectory, and you should see a 3D plot:

Animations

Animations generally consists of two steps:

1. Generating the frames
2. Combining the frames into a video

If you know how to make a plot, you already know how to generate frames. First, let us copy step5.py to extra.py and modify it slightly to include solar_system_plus.

Code (Click to expand)

extra.py

OPTION = 2

# Default units is AU, days, and M_sun

# Solar system
if OPTION == 0:
    INITIAL_CONDITION = "solar_system"
    TF = 200.0 * 365.24  # 200 years to days
    TOLERANCE = 1e-8
    OUTPUT_INTERVAL = 0.01 * 365.24  # 0.01 year to days
    INITIAL_DT = 1.0

# Pyth-3-body
elif OPTION == 1:
    INITIAL_CONDITION = "pyth-3-body"
    TF = 70.0
    TOLERANCE = 1e-13
    OUTPUT_INTERVAL = 0.001
    INITIAL_DT = 0.01

elif OPTION == 2:
    INITIAL_CONDITION = "solar_system_plus"
    TF = 250.0 * 365.24  # 200 years to days
    TOLERANCE = 1e-8
    OUTPUT_INTERVAL = 0.5 * 365.24  # 0.5 year to days
    INITIAL_DT = 1.0

else:
    raise ValueError(
        "Invalid option. Choose 0 for solar system, 1 for Pyth-3-body, or 2 for solar system plus."
    )

Output interval

Be careful with the output interval. In this section, we are converting all solution output into frames. A few hundred frames should be enough.

We need a place to store the frames. Lets store it at 5_steps_to_n_body_simulation/figures/frames (or anywhere you like).

extra.py

from pathlib import Path

FRAMES_DIR = Path(__file__).parent.parent / "figures" / "frames"
FRAMES_DIR.mkdir(parents=True, exist_ok=True)

For simplicity, let us draw the frames in the main function. Note that we need to set the min and max values for the axes.

extra.py

    print("Drawing frames...")
    x_min, x_max = np.min(sol_x[:, :, 0]), np.max(sol_x[:, :, 0])
    y_min, y_max = np.min(sol_x[:, :, 1]), np.max(sol_x[:, :, 1])
    z_min, z_max = np.min(sol_x[:, :, 2]), np.max(sol_x[:, :, 2])
    xyz_min = np.min([x_min, y_min, z_min])
    xyz_max = np.max([x_max, y_max, z_max])

    for n in range(output_count):
        print(f"Progress: {n + 1} / {output_count}", end="\r")

        # Draw the trajectory
        fig = plt.figure()
        ax = fig.add_subplot(111, projection="3d")
        ax.set_xlabel("$x$ (AU)")
        ax.set_ylabel("$y$ (AU)")
        ax.set_zlabel("$z$ (AU)")  # type: ignore

        for i in range(sol_x.shape[1]):
            traj = ax.plot(
                sol_x[:n, i, 0],
                sol_x[:n, i, 1],
                sol_x[:n, i, 2],
                color=colors[i],
            )
            # Plot the last position with marker
            ax.scatter(
                sol_x[n, i, 0],
                sol_x[n, i, 1],
                sol_x[n, i, 2],
                marker="o",
                color=traj[0].get_color(),
                label=labels[i],
            )

        ax.set_xlim3d(xyz_min, xyz_max)
        ax.set_ylim3d(xyz_min, xyz_max)
        ax.set_zlim3d(xyz_min, xyz_max)

        # Set equal aspect ratio to prevent distortion
        ax.set_aspect("equal")

        if legend:
            ax.legend(loc="center right", bbox_to_anchor=(1.325, 0.5))
            fig.subplots_adjust(right=0.7)
            fig.tight_layout()

        plt.savefig(FRAMES_DIR / f"frames_{n:05d}.png")
        plt.close("all")
    print("\nDone!")

Now, we can combine the frames into a gif file using the PIL library. (If you want a mp4 file instead, you can use the ffmpeg library.) You can install PIL using

pip install pillow

The code is given below. The logic is simple: we open the first frame and append the rest of the frames to it. It is done by using a generator function. After the animation is done, we delete all frames by using Path.unlink().

extra.py

    print("Combining frames to gif...")

    def frames_generator():
        for i in range(output_count):
            yield PIL.Image.open(FRAMES_DIR / f"frames_{i:05d}.png")

    fps = 30
    frames = frames_generator()
    next(frames).save(
        FRAMES_DIR / "animation.gif",
        save_all=True,
        append_images=frames,
        loop=0,
        duration=(1000 // fps),
    )

    for i in range(output_count):
        (FRAMES_DIR / f"frames_{i:05d}.png").unlink()

    print(f"Output completed! Please check {FRAMES_DIR / 'animation.gif'}")
    print()

You should see the animation:

Conclusion

In this section, we learned how to make 3D plots and animations using the matplotlib library.

Full scripts

The full scripts are available at 5_steps_to_n_body_simulation/python/, or https://github.com/alvinng4/grav_sim/blob/main/5_steps_to_n_body_simulation/python/

extra.py (Click to expand)

import math
import timeit
from pathlib import Path

import numpy as np
import PIL
import matplotlib.pyplot as plt

import common

OPTION = 2
FRAMES_DIR = Path(__file__).parent.parent / "figures" / "frames"
FRAMES_DIR.mkdir(parents=True, exist_ok=True)

# Default units is AU, days, and M_sun

# Solar system
if OPTION == 0:
    INITIAL_CONDITION = "solar_system"
    TF = 200.0 * 365.24  # 200 years to days
    TOLERANCE = 1e-8
    OUTPUT_INTERVAL = 0.01 * 365.24  # 0.01 year to days
    INITIAL_DT = 1.0

# Pyth-3-body
elif OPTION == 1:
    INITIAL_CONDITION = "pyth-3-body"
    TF = 70.0
    TOLERANCE = 1e-13
    OUTPUT_INTERVAL = 0.001
    INITIAL_DT = 0.01

elif OPTION == 2:
    INITIAL_CONDITION = "solar_system_plus"
    TF = 250.0 * 365.24  # 200 years to days
    TOLERANCE = 1e-8
    OUTPUT_INTERVAL = 0.5 * 365.24  # 0.5 year to days
    INITIAL_DT = 1.0

else:
    raise ValueError(
        "Invalid option. Choose 0 for solar system, 1 for Pyth-3-body, or 2 for solar system plus."
    )


def main() -> None:
    # Get initial conditions
    system, labels, colors, legend = common.get_initial_conditions(INITIAL_CONDITION)

    # RKF4(5) coefficients
    # fmt: off
    coeff = np.array((
        [1.0 / 4.0, 0.0, 0.0, 0.0, 0.0],
        [3.0 / 32.0, 9.0 / 32.0, 0.0, 0.0, 0.0],
        [1932.0 / 2197.0, -7200.0 / 2197.0, 7296.0 / 2197.0, 0.0, 0.0],
        [439.0 / 216.0, -8.0, 3680.0 / 513.0, -845.0 / 4104.0, 0.0],
        [-8.0 / 27.0, 2.0, -3544.0 / 2565.0, 1859.0 / 4104.0, -11.0 / 40.0],
    ))
    # fmt: on
    weights = np.array(
        [25.0 / 216.0, 0.0, 1408.0 / 2565.0, 2197.0 / 4104.0, -1.0 / 5.0, 0.0]
    )
    weights_test = np.array(
        [
            16.0 / 135.0,
            0.0,
            6656.0 / 12825.0,
            28561.0 / 56430.0,
            -9.0 / 50.0,
            2.0 / 55.0,
        ]
    )
    min_power = 4
    num_stages = len(weights)

    # Initialize memory and arrays
    a = np.zeros((system.num_particles, 3))
    temp_system = common.System(
        num_particles=system.num_particles,
        x=np.zeros((system.num_particles, 3)),
        v=np.zeros((system.num_particles, 3)),
        m=system.m,
        G=system.G,
    )
    x_1 = np.zeros((system.num_particles, 3))
    v_1 = np.zeros((system.num_particles, 3))
    xk = np.zeros((num_stages, system.num_particles, 3))
    vk = np.zeros((num_stages, system.num_particles, 3))
    error_estimation_delta_x = np.zeros((system.num_particles, 3))
    error_estimation_delta_v = np.zeros((system.num_particles, 3))
    tolerance_scale_x = np.zeros((system.num_particles, 3))
    tolerance_scale_v = np.zeros((system.num_particles, 3))

    # Safety factors for step-size control
    safety_fac_max = 6.0
    safety_fac_min = 0.33
    safety_fac = math.pow(0.38, 1.0 / (1.0 + float(min_power)))

    # Solution array
    sol_size = int(TF // OUTPUT_INTERVAL + 2)  # +2 for initial and final time
    sol_x = np.zeros((sol_size, system.num_particles, 3))
    sol_v = np.zeros((sol_size, system.num_particles, 3))
    sol_t = np.zeros(sol_size)
    sol_dt = np.zeros(sol_size)
    sol_x[0] = system.x
    sol_v[0] = system.v
    sol_t[0] = 0.0
    sol_dt[0] = INITIAL_DT
    output_count = 1

    # Launch simulation
    common.print_simulation_info_adaptive_step_size(
        system, TF, TOLERANCE, INITIAL_DT, OUTPUT_INTERVAL, sol_size
    )
    next_output_time = output_count * OUTPUT_INTERVAL
    start = timeit.default_timer()
    dt = INITIAL_DT
    current_time = 0.0
    while current_time < TF:
        # Initial stage
        common.acceleration(a, system)
        xk[0] = system.v
        vk[0] = a

        # Compute the stages
        for stage in range(1, num_stages):
            # Empty temp_x and temp_v
            temp_system.x.fill(0.0)
            temp_system.v.fill(0.0)

            for i in range(stage):
                temp_system.x[:] += coeff[stage - 1, i] * xk[i]
                temp_system.v[:] += coeff[stage - 1, i] * vk[i]

            temp_system.x[:] = system.x + dt * temp_system.x
            temp_system.v[:] = system.v + dt * temp_system.v

            # Compute the acceleration
            xk[stage] = temp_system.v
            common.acceleration(vk[stage], temp_system)

        # Calculate x_1, v_1 and also delta x, delta v for error estimation
        x_1[:] = system.x
        v_1[:] = system.v
        error_estimation_delta_x.fill(0.0)
        error_estimation_delta_v.fill(0.0)
        for stage in range(num_stages):
            x_1[:] += dt * weights[stage] * xk[stage]
            v_1[:] += dt * weights[stage] * vk[stage]
            error_estimation_delta_x[:] += (
                dt * (weights[stage] - weights_test[stage]) * xk[stage]
            )
            error_estimation_delta_v[:] += (
                dt * (weights[stage] - weights_test[stage]) * vk[stage]
            )

        # Error estimation
        tolerance_scale_x[:] = (
            TOLERANCE + np.maximum(np.abs(system.x), np.abs(x_1)) * TOLERANCE
        )
        tolerance_scale_v[:] = (
            TOLERANCE + np.maximum(np.abs(system.v), np.abs(v_1)) * TOLERANCE
        )

        total = np.sum(
            np.square(error_estimation_delta_x / tolerance_scale_x)
        ) + np.sum(np.square(error_estimation_delta_v / tolerance_scale_v))
        error = math.sqrt(total / (system.num_particles * 3.0 * 2.0))

        # Advance step
        if error <= 1.0 or dt <= TF * 1e-12:
            current_time += dt
            system.x[:] = x_1
            system.v[:] = v_1

            if current_time >= next_output_time:
                sol_x[output_count] = system.x
                sol_v[output_count] = system.v
                sol_t[output_count] = current_time
                sol_dt[output_count] = dt

                output_count += 1
                next_output_time = output_count * OUTPUT_INTERVAL

                print(f"Current time: {current_time:.2f} days", end="\r")

        # Calculate dt for next step
        if error < 1e-12:
            error = 1e-12  # Prevent error from being too small

        dt_new = dt * safety_fac / math.pow(error, 1.0 / (1.0 + float(min_power)))
        if dt_new > safety_fac_max * dt:
            dt *= safety_fac_max
        elif dt_new < safety_fac_min * dt:
            dt *= safety_fac_min
        else:
            dt = dt_new

        if dt_new < TF * 1e-12:
            dt = TF * 1e-12

        # Correct overshooting
        if current_time < TF and current_time + dt > TF:
            dt = TF - current_time

    sol_x = sol_x[:output_count]
    sol_v = sol_v[:output_count]
    sol_t = sol_t[:output_count]
    sol_dt = sol_dt[:output_count]

    end = timeit.default_timer()

    print()
    print(f"Done! Runtime: {end - start:.3g} seconds, Solution size: {output_count}")

    print("Drawing frames...")
    x_min, x_max = np.min(sol_x[:, :, 0]), np.max(sol_x[:, :, 0])
    y_min, y_max = np.min(sol_x[:, :, 1]), np.max(sol_x[:, :, 1])
    z_min, z_max = np.min(sol_x[:, :, 2]), np.max(sol_x[:, :, 2])
    xyz_min = np.min([x_min, y_min, z_min])
    xyz_max = np.max([x_max, y_max, z_max])

    for n in range(output_count):
        print(f"Progress: {n + 1} / {output_count}", end="\r")

        # Draw the trajectory
        fig = plt.figure()
        ax = fig.add_subplot(111, projection="3d")
        ax.set_xlabel("$x$ (AU)")
        ax.set_ylabel("$y$ (AU)")
        ax.set_zlabel("$z$ (AU)")  # type: ignore

        for i in range(sol_x.shape[1]):
            traj = ax.plot(
                sol_x[:n, i, 0],
                sol_x[:n, i, 1],
                sol_x[:n, i, 2],
                color=colors[i],
            )
            # Plot the last position with marker
            ax.scatter(
                sol_x[n, i, 0],
                sol_x[n, i, 1],
                sol_x[n, i, 2],
                marker="o",
                color=traj[0].get_color(),
                label=labels[i],
            )

        ax.set_xlim3d(xyz_min, xyz_max) # type: ignore
        ax.set_ylim3d(xyz_min, xyz_max) # type: ignore
        ax.set_zlim3d(xyz_min, xyz_max) # type: ignore

        # Set equal aspect ratio to prevent distortion
        ax.set_aspect("equal")

        if legend:
            ax.legend(loc="center right", bbox_to_anchor=(1.325, 0.5))
            fig.subplots_adjust(right=0.7)
            fig.tight_layout()

        plt.savefig(FRAMES_DIR / f"frames_{n:05d}.png")
        plt.close("all")
    print("\nDone!")

    print("Combining frames to gif...")

    def frames_generator():
        for i in range(output_count):
            yield PIL.Image.open(FRAMES_DIR / f"frames_{i:05d}.png")

    fps = 30
    frames = frames_generator()
    next(frames).save(
        FRAMES_DIR / "animation.gif",
        save_all=True,
        append_images=frames,
        loop=0,
        duration=(1000 // fps),
    )

    for i in range(output_count):
        (FRAMES_DIR / f"frames_{i:05d}.png").unlink()

    print(f"Output completed! Please check {FRAMES_DIR / 'animation.gif'}")
    print()


if __name__ == "__main__":
    main()

common.py (Click to expand)

from typing import Tuple, List, Optional

import numpy as np
import matplotlib.pyplot as plt


##### Step 1 #####
class System:
    def __init__(
        self, num_particles: int, x: np.ndarray, v: np.ndarray, m: np.ndarray, G: float
    ) -> None:
        self.num_particles = num_particles
        self.x = x
        self.v = v
        self.m = m
        self.G = G

    def center_of_mass_correction(self) -> None:
        """Set center of mass of position and velocity to zero"""
        M = np.sum(self.m)
        x_cm = np.einsum("i,ij->j", self.m, self.x) / M
        v_cm = np.einsum("i,ij->j", self.m, self.v) / M

        self.x -= x_cm
        self.v -= v_cm


def get_initial_conditions(
    initial_condition: str,
) -> Tuple[System, List[Optional[str]], List[Optional[str]], bool]:
    """
    Returns the initial conditions for solar system,
    with units AU, days, and M_sun.

    Parameters
    ----------
    initial_condition : str
        Name for the initial condition.

    Returns
    -------
    system: System
        System object with initial conditions.
    labels: list
        Labels for the particles.
    colors: list
        Colors for the particles.
    legend: bool
        Whether to show the legend.
    """
    # Conversion factor from km^3 s^-2 to AU^3 d^-2
    CONVERSION_FACTOR = (86400**2) / (149597870.7**3)

    # GM values (km^3 s^-2)
    # ref: https://ssd.jpl.nasa.gov/doc/Park.2021.AJ.DE440.pdf
    GM_KM_S = {
        "Sun": 132712440041.279419,
        "Mercury": 22031.868551,
        "Venus": 324858.592000,
        "Earth": 398600.435507,
        "Mars": 42828.375816,
        "Jupiter": 126712764.100000,
        "Saturn": 37940584.841800,
        "Uranus": 5794556.400000,
        "Neptune": 6836527.100580,
        "Moon": 4902.800118,
        "Pluto": 975.500000,
        "Ceres": 62.62890,
        "Vesta": 17.288245,
    }

    # GM values (AU^3 d^-2)
    GM_AU_DAY = {
        "Sun": 132712440041.279419 * CONVERSION_FACTOR,
        "Mercury": 22031.868551 * CONVERSION_FACTOR,
        "Venus": 324858.592000 * CONVERSION_FACTOR,
        "Earth": 398600.435507 * CONVERSION_FACTOR,
        "Mars": 42828.375816 * CONVERSION_FACTOR,
        "Jupiter": 126712764.100000 * CONVERSION_FACTOR,
        "Saturn": 37940584.841800 * CONVERSION_FACTOR,
        "Uranus": 5794556.400000 * CONVERSION_FACTOR,
        "Neptune": 6836527.100580 * CONVERSION_FACTOR,
        "Moon": 4902.800118 * CONVERSION_FACTOR,
        "Pluto": 975.500000 * CONVERSION_FACTOR,
        "Ceres": 62.62890 * CONVERSION_FACTOR,
        "Vesta": 17.288245 * CONVERSION_FACTOR,
    }

    # Solar system masses (M_sun^-1)
    SOLAR_SYSTEM_MASSES = {
        "Sun": 1.0,
        "Mercury": GM_KM_S["Mercury"] / GM_KM_S["Sun"],
        "Venus": GM_KM_S["Venus"] / GM_KM_S["Sun"],
        "Earth": GM_KM_S["Earth"] / GM_KM_S["Sun"],
        "Mars": GM_KM_S["Mars"] / GM_KM_S["Sun"],
        "Jupiter": GM_KM_S["Jupiter"] / GM_KM_S["Sun"],
        "Saturn": GM_KM_S["Saturn"] / GM_KM_S["Sun"],
        "Uranus": GM_KM_S["Uranus"] / GM_KM_S["Sun"],
        "Neptune": GM_KM_S["Neptune"] / GM_KM_S["Sun"],
        "Moon": GM_KM_S["Moon"] / GM_KM_S["Sun"],
        "Pluto": GM_KM_S["Pluto"] / GM_KM_S["Sun"],
        "Ceres": GM_KM_S["Ceres"] / GM_KM_S["Sun"],
        "Vesta": GM_KM_S["Vesta"] / GM_KM_S["Sun"],
    }

    G = GM_AU_DAY["Sun"]

    # Solar system position and velocities data
    # Units: AU-D
    # Coordinate center: Solar System Barycenter
    # Data dated on A.D. 2024-Jan-01 00:00:00.0000 TDB
    # Computational data generated by NASA JPL Horizons System https://ssd.jpl.nasa.gov/horizons/
    SOLAR_SYSTEM_POS = {
        "Sun": [-7.967955691533730e-03, -2.906227441573178e-03, 2.103054301547123e-04],
        "Mercury": [
            -2.825983269538632e-01,
            1.974559795958082e-01,
            4.177433558063677e-02,
        ],
        "Venus": [
            -7.232103701666379e-01,
            -7.948302026312400e-02,
            4.042871428174315e-02,
        ],
        "Earth": [-1.738192017257054e-01, 9.663245550235138e-01, 1.553901854897183e-04],
        "Mars": [-3.013262392582653e-01, -1.454029331393295e00, -2.300531433991428e-02],
        "Jupiter": [3.485202469657674e00, 3.552136904413157e00, -9.271035442798399e-02],
        "Saturn": [8.988104223143450e00, -3.719064854634689e00, -2.931937777323593e-01],
        "Uranus": [1.226302417897505e01, 1.529738792480545e01, -1.020549026883563e-01],
        "Neptune": [
            2.983501460984741e01,
            -1.793812957956852e00,
            -6.506401132254588e-01,
        ],
        "Moon": [-1.762788124769829e-01, 9.674377513177153e-01, 3.236901585768862e-04],
        "Pluto": [1.720200478843485e01, -3.034155683573043e01, -1.729127607100611e00],
        "Ceres": [-1.103880510367569e00, -2.533340440444230e00, 1.220283937721780e-01],
        "Vesta": [-8.092549658731499e-02, 2.558381434460076e00, -6.695836142398572e-02],
    }
    SOLAR_SYSTEM_VEL = {
        "Sun": [4.875094764261564e-06, -7.057133213976680e-06, -4.573453713094512e-08],
        "Mercury": [
            -2.232165900189702e-02,
            -2.157207103176252e-02,
            2.855193410495743e-04,
        ],
        "Venus": [
            2.034068201002341e-03,
            -2.020828626592994e-02,
            -3.945639843855159e-04,
        ],
        "Earth": [
            -1.723001232538228e-02,
            -2.967721342618870e-03,
            6.382125383116755e-07,
        ],
        "Mars": [1.424832259345280e-02, -1.579236181580905e-03, -3.823722796161561e-04],
        "Jupiter": [
            -5.470970658852281e-03,
            5.642487338479145e-03,
            9.896190602066252e-05,
        ],
        "Saturn": [
            1.822013845554067e-03,
            5.143470425888054e-03,
            -1.617235904887937e-04,
        ],
        "Uranus": [
            -3.097615358317413e-03,
            2.276781932345769e-03,
            4.860433222241686e-05,
        ],
        "Neptune": [
            1.676536611817232e-04,
            3.152098732861913e-03,
            -6.877501095688201e-05,
        ],
        "Moon": [
            -1.746667306153906e-02,
            -3.473438277358121e-03,
            -3.359028758606074e-05,
        ],
        "Pluto": [2.802810313667557e-03, 8.492056438614633e-04, -9.060790113327894e-04],
        "Ceres": [
            8.978653480111301e-03,
            -4.873256528198994e-03,
            -1.807162046049230e-03,
        ],
        "Vesta": [
            -1.017876585480054e-02,
            -5.452367109338154e-04,
            1.255870551153315e-03,
        ],
    }

    SOLAR_SYSTEM_COLORS = {
        "Sun": "orange",
        "Mercury": "slategrey",
        "Venus": "wheat",
        "Earth": "skyblue",
        "Mars": "red",
        "Jupiter": "darkgoldenrod",
        "Saturn": "gold",
        "Uranus": "paleturquoise",
        "Neptune": "blue",
    }

    SOLAR_SYSTEM_PLUS_COLORS = {
        "Sun": "orange",
        "Mercury": "slategrey",
        "Venus": "wheat",
        "Earth": "skyblue",
        "Mars": "red",
        "Jupiter": "darkgoldenrod",
        "Saturn": "gold",
        "Uranus": "paleturquoise",
        "Neptune": "blue",
        "Pluto": None,
        "Ceres": None,
        "Vesta": None,
    }

    if initial_condition == "pyth-3-body":
        # Pythagorean 3-body problem
        R1 = np.array([1.0, 3.0, 0.0])
        R2 = np.array([-2.0, -1.0, 0.0])
        R3 = np.array([1.0, -1.0, 0.0])
        V1 = np.array([0.0, 0.0, 0.0])
        V2 = np.array([0.0, 0.0, 0.0])
        V3 = np.array([0.0, 0.0, 0.0])

        x = np.array([R1, R2, R3])
        v = np.array([V1, V2, V3])
        m = np.array([3.0 / G, 4.0 / G, 5.0 / G])

        system = System(
            num_particles=len(m),
            x=x,
            v=v,
            m=m,
            G=G,
        )
        system.center_of_mass_correction()

        labels: List[Optional[str]] = [None, None, None]
        colors: List[Optional[str]] = [None, None, None]
        legend = False

        return system, labels, colors, legend

    elif initial_condition == "solar_system":
        m = np.array(
            [
                SOLAR_SYSTEM_MASSES["Sun"],
                SOLAR_SYSTEM_MASSES["Mercury"],
                SOLAR_SYSTEM_MASSES["Venus"],
                SOLAR_SYSTEM_MASSES["Earth"],
                SOLAR_SYSTEM_MASSES["Mars"],
                SOLAR_SYSTEM_MASSES["Jupiter"],
                SOLAR_SYSTEM_MASSES["Saturn"],
                SOLAR_SYSTEM_MASSES["Uranus"],
                SOLAR_SYSTEM_MASSES["Neptune"],
            ]
        )

        R1 = np.array(SOLAR_SYSTEM_POS["Sun"])
        R2 = np.array(SOLAR_SYSTEM_POS["Mercury"])
        R3 = np.array(SOLAR_SYSTEM_POS["Venus"])
        R4 = np.array(SOLAR_SYSTEM_POS["Earth"])
        R5 = np.array(SOLAR_SYSTEM_POS["Mars"])
        R6 = np.array(SOLAR_SYSTEM_POS["Jupiter"])
        R7 = np.array(SOLAR_SYSTEM_POS["Saturn"])
        R8 = np.array(SOLAR_SYSTEM_POS["Uranus"])
        R9 = np.array(SOLAR_SYSTEM_POS["Neptune"])

        V1 = np.array(SOLAR_SYSTEM_VEL["Sun"])
        V2 = np.array(SOLAR_SYSTEM_VEL["Mercury"])
        V3 = np.array(SOLAR_SYSTEM_VEL["Venus"])
        V4 = np.array(SOLAR_SYSTEM_VEL["Earth"])
        V5 = np.array(SOLAR_SYSTEM_VEL["Mars"])
        V6 = np.array(SOLAR_SYSTEM_VEL["Jupiter"])
        V7 = np.array(SOLAR_SYSTEM_VEL["Saturn"])
        V8 = np.array(SOLAR_SYSTEM_VEL["Uranus"])
        V9 = np.array(SOLAR_SYSTEM_VEL["Neptune"])

        x = np.array(
            [
                R1,
                R2,
                R3,
                R4,
                R5,
                R6,
                R7,
                R8,
                R9,
            ]
        )
        v = np.array(
            [
                V1,
                V2,
                V3,
                V4,
                V5,
                V6,
                V7,
                V8,
                V9,
            ]
        )

        system = System(
            num_particles=len(m),
            x=x,
            v=v,
            m=m,
            G=G,
        )
        system.center_of_mass_correction()

        labels = list(SOLAR_SYSTEM_COLORS.keys())
        colors = list(SOLAR_SYSTEM_COLORS.values())
        legend = True

        return system, labels, colors, legend

    elif initial_condition == "solar_system_plus":
        m = np.array(
            [
                SOLAR_SYSTEM_MASSES["Sun"],
                SOLAR_SYSTEM_MASSES["Mercury"],
                SOLAR_SYSTEM_MASSES["Venus"],
                SOLAR_SYSTEM_MASSES["Earth"],
                SOLAR_SYSTEM_MASSES["Mars"],
                SOLAR_SYSTEM_MASSES["Jupiter"],
                SOLAR_SYSTEM_MASSES["Saturn"],
                SOLAR_SYSTEM_MASSES["Uranus"],
                SOLAR_SYSTEM_MASSES["Neptune"],
                SOLAR_SYSTEM_MASSES["Pluto"],
                SOLAR_SYSTEM_MASSES["Ceres"],
                SOLAR_SYSTEM_MASSES["Vesta"],
            ]
        )

        R1 = np.array(SOLAR_SYSTEM_POS["Sun"])
        R2 = np.array(SOLAR_SYSTEM_POS["Mercury"])
        R3 = np.array(SOLAR_SYSTEM_POS["Venus"])
        R4 = np.array(SOLAR_SYSTEM_POS["Earth"])
        R5 = np.array(SOLAR_SYSTEM_POS["Mars"])
        R6 = np.array(SOLAR_SYSTEM_POS["Jupiter"])
        R7 = np.array(SOLAR_SYSTEM_POS["Saturn"])
        R8 = np.array(SOLAR_SYSTEM_POS["Uranus"])
        R9 = np.array(SOLAR_SYSTEM_POS["Neptune"])
        R10 = np.array(SOLAR_SYSTEM_POS["Pluto"])
        R11 = np.array(SOLAR_SYSTEM_POS["Ceres"])
        R12 = np.array(SOLAR_SYSTEM_POS["Vesta"])

        V1 = np.array(SOLAR_SYSTEM_VEL["Sun"])
        V2 = np.array(SOLAR_SYSTEM_VEL["Mercury"])
        V3 = np.array(SOLAR_SYSTEM_VEL["Venus"])
        V4 = np.array(SOLAR_SYSTEM_VEL["Earth"])
        V5 = np.array(SOLAR_SYSTEM_VEL["Mars"])
        V6 = np.array(SOLAR_SYSTEM_VEL["Jupiter"])
        V7 = np.array(SOLAR_SYSTEM_VEL["Saturn"])
        V8 = np.array(SOLAR_SYSTEM_VEL["Uranus"])
        V9 = np.array(SOLAR_SYSTEM_VEL["Neptune"])
        V10 = np.array(SOLAR_SYSTEM_VEL["Pluto"])
        V11 = np.array(SOLAR_SYSTEM_VEL["Ceres"])
        V12 = np.array(SOLAR_SYSTEM_VEL["Vesta"])

        x = np.array(
            [
                R1,
                R2,
                R3,
                R4,
                R5,
                R6,
                R7,
                R8,
                R9,
                R10,
                R11,
                R12,
            ]
        )
        v = np.array(
            [
                V1,
                V2,
                V3,
                V4,
                V5,
                V6,
                V7,
                V8,
                V9,
                V10,
                V11,
                V12,
            ]
        )

        system = System(
            num_particles=len(m),
            x=x,
            v=v,
            m=m,
            G=G,
        )
        system.center_of_mass_correction()

        labels = list(SOLAR_SYSTEM_PLUS_COLORS.keys())
        colors = list(SOLAR_SYSTEM_PLUS_COLORS.values())
        legend = True

        return system, labels, colors, legend

    else:
        raise ValueError(f"Initial condition not recognized: {initial_condition}.")


def plot_initial_conditions(
    system: System,
    labels: list,
    colors: list,
    legend: bool,
) -> None:
    """
    Plot the initial positions.

    Parameters
    ----------
    system : System
        System object.
    labels : list
        Labels for the particles.
    colors : list
        Colors for the particles.
    legend : bool
        Whether to show the legend.
    """
    fig, ax = plt.subplots()
    ax.set_xlabel("$x$ (AU)")
    ax.set_ylabel("$y$ (AU)")

    for i in range(system.num_particles):
        ax.scatter(
            system.x[i, 0], system.x[i, 1], marker="o", color=colors[i], label=labels[i]
        )

    if legend:
        ax.legend()

    plt.show()


##### Step 2 #####
def acceleration(
    a: np.ndarray,
    system: System,
) -> None:
    """
    Compute the gravitational acceleration

    Parameters
    ----------
    a : np.ndarray
        Gravitational accelerations array to be modified in-place,
        with shape (N, 3)
    system : System
        System object.
    """
    # Empty acceleration array
    a.fill(0.0)

    # Declare variables
    x = system.x
    m = system.m
    G = system.G

    # Compute the displacement vector
    r_ij = x[:, np.newaxis, :] - x[np.newaxis, :, :]

    # Compute the distance
    r_norm = np.linalg.norm(r_ij, axis=2)

    # Compute 1 / r^3
    with np.errstate(divide="ignore", invalid="ignore"):
        inv_r_cubed = 1.0 / (r_norm * r_norm * r_norm)

    # Set diagonal elements to 0 to avoid self-interaction
    np.fill_diagonal(inv_r_cubed, 0.0)

    # Compute the acceleration
    a[:] = G * np.einsum("ijk,ij,i->jk", r_ij, inv_r_cubed, m)


##### Step 3 #####
def euler(a: np.ndarray, system: System, dt: float) -> None:
    """
    Advance one step with the Euler's method.

    Parameters
    ----------
    a : np.ndarray
        Gravitational accelerations array with shape (N, 3).
    system : System
        System object.
    dt : float
        Time step.
    """
    acceleration(a, system)
    system.x += system.v * dt
    system.v += a * dt


def print_simulation_info_fixed_step_size(
    system: System,
    tf: float,
    dt: float,
    num_steps: int,
    output_interval: float,
    sol_size: int,
) -> None:
    print("----------------------------------------------------------")
    print("Simulation Info:")
    print(f"num_particles: {system.num_particles}")
    print(f"G: {system.G}")
    print(f"tf: {tf} days (Actual tf = dt * num_steps = {dt * num_steps} days)")
    print(f"dt: {dt} days")
    print(f"Num_steps: {num_steps}")
    print()
    print(f"Output interval: {output_interval} days")
    print(f"Estimated solution size: {sol_size}")
    print("----------------------------------------------------------")


def plot_trajectory(
    sol_x: np.ndarray,
    labels: list,
    colors: list,
    legend: bool,
) -> None:
    """
    Plot the 2D trajectory.

    Parameters
    ----------
    sol_x : np.ndarray
        Solution position array with shape (N_steps, num_particles, 3).
    labels : list
        List of labels for the particles.
    colors : list
        List of colors for the particles.
    legend : bool
        Whether to show the legend.
    """
    fig = plt.figure()
    ax = fig.add_subplot(111, aspect="equal")
    ax.set_xlabel("$x$ (AU)")
    ax.set_ylabel("$y$ (AU)")

    for i in range(sol_x.shape[1]):
        traj = ax.plot(
            sol_x[:, i, 0],
            sol_x[:, i, 1],
            color=colors[i],
        )
        # Plot the last position with marker
        ax.scatter(
            sol_x[-1, i, 0],
            sol_x[-1, i, 1],
            marker="o",
            color=traj[0].get_color(),
            label=labels[i],
        )

    if legend:
        fig.legend(loc="center right", borderaxespad=0.2)
        fig.tight_layout()

    plt.show()


##### Step 4 #####
def compute_rel_energy_error(
    sol_x: np.ndarray, sol_v: np.ndarray, system: System
) -> np.ndarray:
    """
    Compute the relative energy error of the simulation.

    Parameters
    ----------
    sol_x : np.ndarray
        Solution position array with shape (N_steps, num_particles, 3).
    sol_v : np.ndarray
        Solution velocity array with shape (N_steps, num_particles, 3).
    system : System
        System object.

    Returns
    -------
    energy_error : np.ndarray
        Relative energy error of the simulation, with shape (N_steps,).
    """
    # Allocate memory and initialize arrays
    n_steps = sol_x.shape[0]
    num_particles = system.num_particles
    m = system.m
    G = system.G
    rel_energy_error = np.zeros(n_steps)

    # Compute the total energy (KE + PE)
    for count in range(n_steps):
        x = sol_x[count]
        v = sol_v[count]
        for i in range(num_particles):
            # KE
            rel_energy_error[count] += 0.5 * m[i] * np.linalg.norm(v[i]) ** 2
            # PE
            for j in range(i + 1, num_particles):
                rel_energy_error[count] -= G * m[i] * m[j] / np.linalg.norm(x[i] - x[j])

    # Compute the relative energy error
    initial_energy = rel_energy_error[0]
    rel_energy_error = (rel_energy_error - initial_energy) / initial_energy
    rel_energy_error = np.abs(rel_energy_error)

    return rel_energy_error


def plot_rel_energy_error(rel_energy_error: np.ndarray, sol_t: np.ndarray) -> None:
    """
    Plot the relative energy error.

    Parameters
    ----------
    rel_energy_error : np.ndarray
        Relative energy error of the simulation, with shape (N_steps,).
    sol_t : np.ndarray
        Solution time array with shape (N_steps,).
    """
    plt.figure()
    plt.plot(sol_t, rel_energy_error)
    plt.yscale("log")
    plt.xlabel("Time step")
    plt.ylabel("Relative Energy Error")
    plt.title("Relative Energy Error vs Time Step")
    plt.show()


def euler_cromer(a: np.ndarray, system: System, dt: float) -> None:
    """
    Advance one step with the Euler-Cromer method.

    Parameters
    ----------
    a : np.ndarray
        Gravitational accelerations array with shape (N, 3).
    system : System
        System object.
    dt : float
        Time step.
    """
    acceleration(a, system)
    system.v += a * dt
    system.x += system.v * dt


def rk4(a: np.ndarray, system: System, dt: float) -> None:
    """
    Advance one step with the RK4 method.

    Parameters
    ----------
    a : np.ndarray
        Gravitational accelerations array with shape (N, 3).
    system : System
        System object.
    dt : float
        Time step.
    """
    num_stages = 4
    coeff = np.array([0.5, 0.5, 1.0])
    weights = np.array([1.0, 2.0, 2.0, 1.0]) / 6.0

    # Allocate memory and initialize arrays
    x0 = system.x.copy()
    v0 = system.v.copy()
    xk = np.zeros((num_stages, system.num_particles, 3))
    vk = np.zeros((num_stages, system.num_particles, 3))

    # Initial stage
    acceleration(a, system)
    xk[0] = v0
    vk[0] = a

    # Compute the stages
    for stage in range(1, num_stages):
        # Compute acceleration
        system.x = x0 + dt * coeff[stage - 1] * xk[stage - 1]
        acceleration(a, system)

        # Compute xk and vk
        xk[stage] = v0 + dt * coeff[stage - 1] * vk[stage - 1]
        vk[stage] = a

    # Advance step
    # dx = 0.0
    # dv = 0.0
    # for stage in range(num_stages):
    #     dx += weights[stage] * xk[stage]
    #     dv += weights[stage] * vk[stage]

    dx = np.einsum("i,ijk->jk", weights, xk)
    dv = np.einsum("i,ijk->jk", weights, vk)

    system.x = x0 + dt * dx
    system.v = v0 + dt * dv


def leapfrog(a: np.ndarray, system: System, dt: float) -> None:
    """
    Advance one step with the LeapFrog method.

    Parameters
    ----------
    a : np.ndarray
        Gravitational accelerations array with shape (N, 3).
    system : System
        System object.
    dt : float
        Time step.
    """
    # Velocity kick (v_1/2)
    acceleration(a, system)
    system.v += a * 0.5 * dt

    # Position drift (x_1)
    system.x += system.v * dt

    # Velocity kick (v_1)
    acceleration(a, system)
    system.v += a * 0.5 * dt


##### Step 5 #####
def print_simulation_info_adaptive_step_size(
    system: System,
    tf: float,
    tolerance: float,
    initial_dt: float,
    output_interval: float,
    sol_size: int,
) -> None:
    print("----------------------------------------------------------")
    print("Simulation Info:")
    print(f"num_particles: {system.num_particles}")
    print(f"G: {system.G}")
    print(f"tf: {tf} days")
    print(f"tolerance: {tolerance}")
    print(f"Initial dt: {initial_dt} days")
    print()
    print(f"Output interval: {output_interval} days")
    print(f"Estimated solution size: {sol_size}")
    print("----------------------------------------------------------")


def plot_dt(sol_dt: np.ndarray, sol_t: np.ndarray) -> None:
    """
    Plot the time step.

    Parameters
    ----------
    sol_dt : np.ndarray
        Time step array with shape (N_steps,).
    sol_t : np.ndarray
        Solution time array with shape (N_steps,).
    """
    plt.figure()
    plt.semilogy(sol_t, sol_dt)
    plt.xlabel("Time")
    plt.ylabel("dt")
    plt.show()


##### Extra #####
def set_3d_axes_equal(ax: plt.Axes) -> None:
    """
    Make axes of 3D plot have equal scale

    Parameters
    ----------
    ax : matplotlib axis
        The axis to set equal scale

    Reference
    ---------
    karlo, https://stackoverflow.com/questions/13685386/how-to-set-the-equal-aspect-ratio-for-all-axes-x-y-z
    """

    x_limits = ax.get_xlim3d()  # type: ignore
    y_limits = ax.get_ylim3d()  # type: ignore
    z_limits = ax.get_zlim3d()  # type: ignore

    x_range = abs(x_limits[1] - x_limits[0])
    x_middle = np.mean(x_limits)
    y_range = abs(y_limits[1] - y_limits[0])
    y_middle = np.mean(y_limits)
    z_range = abs(z_limits[1] - z_limits[0])
    z_middle = np.mean(z_limits)

    # The plot bounding box is a sphere in the sense of the infinity
    # norm, hence I call half the max range the plot radius.
    plot_radius = 0.5 * max([x_range, y_range, z_range])

    ax.set_xlim3d([x_middle - plot_radius, x_middle + plot_radius])  # type: ignore
    ax.set_ylim3d([y_middle - plot_radius, y_middle + plot_radius])  # type: ignore
    ax.set_zlim3d([z_middle - plot_radius, z_middle + plot_radius])  # type: ignore


def plot_3d_trajectory(
    sol_x: np.ndarray,
    labels: list,
    colors: list,
    legend: bool,
) -> None:
    """
    Plot the 3D trajectory.

    Parameters
    ----------
    sol_x : np.ndarray
        Solution position array with shape (N_steps, num_particles, 3).
    labels : list
        List of labels for the particles.
    colors : list
        List of colors for the particles.
    legend : bool
        Whether to show the legend.
    """

    fig = plt.figure()
    ax = fig.add_subplot(111, projection="3d")
    ax.set_xlabel("$x$ (AU)")
    ax.set_ylabel("$y$ (AU)")
    ax.set_zlabel("$z$ (AU)")  # type: ignore

    for i in range(sol_x.shape[1]):
        traj = ax.plot(
            sol_x[:, i, 0],
            sol_x[:, i, 1],
            sol_x[:, i, 2],
            color=colors[i],
        )
        # Plot the last position with marker
        ax.scatter(
            sol_x[-1, i, 0],
            sol_x[-1, i, 1],
            sol_x[-1, i, 2],
            marker="o",
            color=traj[0].get_color(),
            label=labels[i],
        )

    set_3d_axes_equal(ax)

    if legend:
        ax.legend(loc="center right", bbox_to_anchor=(1.325, 0.5))
        fig.subplots_adjust(right=0.7)

    plt.show()

Comments
