How to use this tutorial?

The source code for the python scripts and the markdown files are available on

but I strongly recommend reading this tutorial on our website:

Snippets of the code will be shown as we progress, but you don't have to copy them one by one as the full code is always available at the end of each step. However, I do recommend you to translate it into your own code in order to have a better understanding.

Step 1: Initial setup

Welcome to the first step of 5 steps to N-body simulation! This is a series of tutorials with the goal of teaching beginners how to write fast and clean N-body gravity simulations code in Python. In this step, we will set up the required python environment and implement some basic functions to be used in the following steps.

First of all, make sure you have Python 3 installed (to be safe, I recommend Python 3.9 or later). You can check the installation by running the following command in your terminal:

python --version

Two packages are required for this tutorial: numpy and matplotlib. They are popular packages in Python for scientific computing and data visualization. You can install them using pip:

pip install numpy matplotlib

Now we are ready to start coding. First, let us create two files:

  • common.py: This file will contain the common functions and classes used in all steps.
  • step1.py: This file will contain the code for this step.

We first focus on common.py. Import the required packages:

common.py
import numpy as np
import matplotlib.pyplot as plt

System

To keep the code clean and organized, we will create a class called System to represent the N-body system. It has the following attributes:

  • num_particles (float): Number of particles N in the system.
  • x (np.ndarray): Positions of the particles in 3D space (shape: (N, 3)).
  • v (np.ndarray): Velocities of the particles in 3D space (shape: (N, 3)).
  • m (np.ndarray): Masses of the particles (shape: (N,)).
  • G (float): Gravitational constant.
common.py
class System:
    def __init__(
        self, num_particles: int, x: np.ndarray, v: np.ndarray, m: np.ndarray, G: float
    ) -> None:
        self.num_particles = num_particles
        self.x = x
        self.v = v
        self.m = m
        self.G = G

We will also implement a method to set the center of mass position and velocity to zero. This is to prevent drifting of the system during the simulation, and to set the center of mass of the system to the origin. To do this, we subtract the center of mass position and velocity from the particles,

\[ \mathbf{r}_{\mathrm{com}} = \frac{1}{M} \sum_{i=1}^{N} m_i \mathbf{r}_i, \quad \mathbf{v}_{\mathrm{com}} = \frac{1}{M} \sum_{i=1}^{N} m_i \mathbf{v}_i. \]

where \(M\) is the total mass of the system, \(m_i\), \(\mathbf{r}_i\), and \(\mathbf{v}_i\) are the mass, position, and velocity of the i-th particle respectively. If you don't care about the performance, you may just use a for loop to iterate over all particles. By the way, x_cm is a 3D vector, m[i] is a scalar, and self.x[i] is a 3D vector.

common.py
class System:
    ...
    def center_of_mass_correction(self) -> None:
        """Set center of mass of position and velocity to zero"""
        x_cm = np.zeros(3)
        v_cm = np.zeros(3)
        M = 0.0
        for i in range(self.num_particles):
            x_cm += self.m[i] * self.x[i]
            v_cm += self.m[i] * self.v[i]
            M += self.m[i]

        x_cm /= M
        v_cm /= M
        self.x -= x_cm
        self.v -= v_cm

Optimization

Python loops are very slow. Here, we introduce a more efficient approach using numpy's broadcasting feature. First, we compute \(m_i \mathbf{r}_i\) as

self.m[:, np.newaxis] * self.x
where np.newaxis is used to "broadcast" the mass array along axis 1 (column).

\[ \begin{bmatrix} m_{1} \\ m_{2} \\ \vdots \\ m_{N} \end{bmatrix} \to \begin{bmatrix} m_{1} \dots \\ m_{2} \dots \\ \vdots \\ m_{N} \dots \end{bmatrix} \]

The shape of self.m[:, np.newaxis] is now (N, 1) and the shape of self.x is (N, 3). The multiplication is then done element-wise as

\[ \begin{bmatrix} m_{1} r_{1,1} & m_{1} r_{1,2} & m_{1} r_{1,3} \\ m_{2} r_{2,1} & m_{2} r_{2,2} & m_{2} r_{2,3} \\ \vdots & \vdots & \vdots \\ m_{N} r_{N,1} & m_{N} r_{N,2} & m_{N} r_{N,3} \end{bmatrix} \]

Then, to get \(\sum_{i = 1}^N m_i \mathbf{r}_i\) we perform the summation along the axis 0 (row) with length N by

np.sum(self.m[:, np.newaxis] * self.x, axis=0)
A even faster way is to use np.einsum.
np.einsum("i,ij->j", self.m, self.x)
Why i,ij->j? Denote the axis 0 and 1 as \(i\) and \(j\) respectively.

  • m is a 1D vector broadcasted along axis 1: \(i\)
  • x is a 2D vector: \(ij\)
  • Final sum is done along axis 0: \(ij \to j\)

Finally, the total mass \(M\) can be simply computed as

M = np.sum(self.m)
Putting it all together, we have the following code:
common.py
class System:
    ...
    def center_of_mass_correction(self) -> None:
        """Set center of mass of position and velocity to zero"""
        M = np.sum(self.m)
        x_cm = np.einsum("i,ij->j", self.m, self.x) / M
        v_cm = np.einsum("i,ij->j", self.m, self.v) / M

        self.x -= x_cm
        self.v -= v_cm

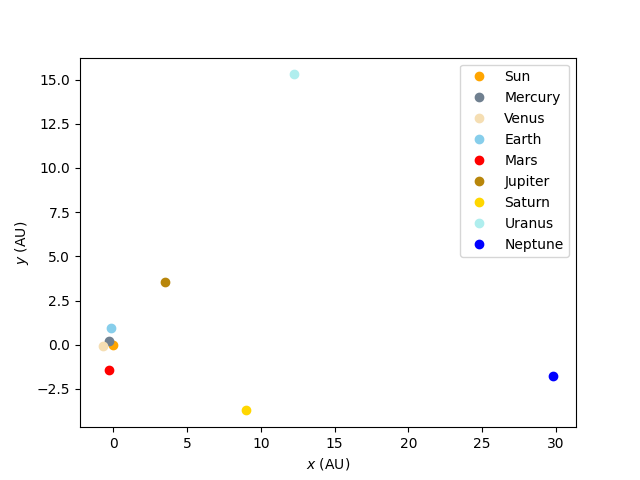

Initial conditions (Solar System)

With the System class ready, we can now implement a function to get the initial conditions. Since it is tedious to prepare the initial conditions, I have prepared the data for you. Simply input the name of the system and it will return the initial conditions and information for plotting.

Data Sources

The Solar System initial conditions at 1/Jan/2024 are generated using the JPL Horizons System1. Gravitational constant and masses of the solar system objects are calculated using the data from R.S. Park, et. al.2.

Tip

In our tutorial, we will stick with the following units:

  • Length: AU (Astronomical Unit), i.e. the distance from the Earth to the Sun.
  • Mass: \(M_\odot\) (Solar mass)
  • Time: days

They are convenient units for solar system simulations. If you want to use different units, make sure to convert all data to the same units and be consistent.

Code (Click to expand)
common.py
def get_initial_conditions(
    initial_condition: str,
) -> Tuple[System, List[Optional[str]], List[Optional[str]], bool]:
    """
    Returns the initial conditions for solar system,
    with units AU, days, and M_sun.

    Parameters
    ----------
    initial_condition : str
        Name for the initial condition.

    Returns
    -------
    system: System
        System object with initial conditions.
    labels: list
        Labels for the particles.
    colors: list
        Colors for the particles.
    legend: bool
        Whether to show the legend.
    """
    # Conversion factor from km^3 s^-2 to AU^3 d^-2
    CONVERSION_FACTOR = (86400**2) / (149597870.7**3)

    # GM values (km^3 s^-2)
    # ref: https://ssd.jpl.nasa.gov/doc/Park.2021.AJ.DE440.pdf
    GM_KM_S = {
        "Sun": 132712440041.279419,
        "Mercury": 22031.868551,
        "Venus": 324858.592000,
        "Earth": 398600.435507,
        "Mars": 42828.375816,
        "Jupiter": 126712764.100000,
        "Saturn": 37940584.841800,
        "Uranus": 5794556.400000,
        "Neptune": 6836527.100580,
        "Moon": 4902.800118,
        "Pluto": 975.500000,
        "Ceres": 62.62890,
        "Vesta": 17.288245,
    }

    # GM values (AU^3 d^-2)
    GM_AU_DAY = {
        "Sun": 132712440041.279419 * CONVERSION_FACTOR,
        "Mercury": 22031.868551 * CONVERSION_FACTOR,
        "Venus": 324858.592000 * CONVERSION_FACTOR,
        "Earth": 398600.435507 * CONVERSION_FACTOR,
        "Mars": 42828.375816 * CONVERSION_FACTOR,
        "Jupiter": 126712764.100000 * CONVERSION_FACTOR,
        "Saturn": 37940584.841800 * CONVERSION_FACTOR,
        "Uranus": 5794556.400000 * CONVERSION_FACTOR,
        "Neptune": 6836527.100580 * CONVERSION_FACTOR,
        "Moon": 4902.800118 * CONVERSION_FACTOR,
        "Pluto": 975.500000 * CONVERSION_FACTOR,
        "Ceres": 62.62890 * CONVERSION_FACTOR,
        "Vesta": 17.288245 * CONVERSION_FACTOR,
    }

    # Solar system masses (M_sun^-1)
    SOLAR_SYSTEM_MASSES = {
        "Sun": 1.0,
        "Mercury": GM_KM_S["Mercury"] / GM_KM_S["Sun"],
        "Venus": GM_KM_S["Venus"] / GM_KM_S["Sun"],
        "Earth": GM_KM_S["Earth"] / GM_KM_S["Sun"],
        "Mars": GM_KM_S["Mars"] / GM_KM_S["Sun"],
        "Jupiter": GM_KM_S["Jupiter"] / GM_KM_S["Sun"],
        "Saturn": GM_KM_S["Saturn"] / GM_KM_S["Sun"],
        "Uranus": GM_KM_S["Uranus"] / GM_KM_S["Sun"],
        "Neptune": GM_KM_S["Neptune"] / GM_KM_S["Sun"],
        "Moon": GM_KM_S["Moon"] / GM_KM_S["Sun"],
        "Pluto": GM_KM_S["Pluto"] / GM_KM_S["Sun"],
        "Ceres": GM_KM_S["Ceres"] / GM_KM_S["Sun"],
        "Vesta": GM_KM_S["Vesta"] / GM_KM_S["Sun"],
    }

    G = GM_AU_DAY["Sun"]

    # Solar system position and velocities data
    # Units: AU-D
    # Coordinate center: Solar System Barycenter
    # Data dated on A.D. 2024-Jan-01 00:00:00.0000 TDB
    # Computational data generated by NASA JPL Horizons System https://ssd.jpl.nasa.gov/horizons/
    SOLAR_SYSTEM_POS = {
        "Sun": [-7.967955691533730e-03, -2.906227441573178e-03, 2.103054301547123e-04],
        "Mercury": [
            -2.825983269538632e-01,
            1.974559795958082e-01,
            4.177433558063677e-02,
        ],
        "Venus": [
            -7.232103701666379e-01,
            -7.948302026312400e-02,
            4.042871428174315e-02,
        ],
        "Earth": [-1.738192017257054e-01, 9.663245550235138e-01, 1.553901854897183e-04],
        "Mars": [-3.013262392582653e-01, -1.454029331393295e00, -2.300531433991428e-02],
        "Jupiter": [3.485202469657674e00, 3.552136904413157e00, -9.271035442798399e-02],
        "Saturn": [8.988104223143450e00, -3.719064854634689e00, -2.931937777323593e-01],
        "Uranus": [1.226302417897505e01, 1.529738792480545e01, -1.020549026883563e-01],
        "Neptune": [
            2.983501460984741e01,
            -1.793812957956852e00,
            -6.506401132254588e-01,
        ],
        "Moon": [-1.762788124769829e-01, 9.674377513177153e-01, 3.236901585768862e-04],
        "Pluto": [1.720200478843485e01, -3.034155683573043e01, -1.729127607100611e00],
        "Ceres": [-1.103880510367569e00, -2.533340440444230e00, 1.220283937721780e-01],
        "Vesta": [-8.092549658731499e-02, 2.558381434460076e00, -6.695836142398572e-02],
    }
    SOLAR_SYSTEM_VEL = {
        "Sun": [4.875094764261564e-06, -7.057133213976680e-06, -4.573453713094512e-08],
        "Mercury": [
            -2.232165900189702e-02,
            -2.157207103176252e-02,
            2.855193410495743e-04,
        ],
        "Venus": [
            2.034068201002341e-03,
            -2.020828626592994e-02,
            -3.945639843855159e-04,
        ],
        "Earth": [
            -1.723001232538228e-02,
            -2.967721342618870e-03,
            6.382125383116755e-07,
        ],
        "Mars": [1.424832259345280e-02, -1.579236181580905e-03, -3.823722796161561e-04],
        "Jupiter": [
            -5.470970658852281e-03,
            5.642487338479145e-03,
            9.896190602066252e-05,
        ],
        "Saturn": [
            1.822013845554067e-03,
            5.143470425888054e-03,
            -1.617235904887937e-04,
        ],
        "Uranus": [
            -3.097615358317413e-03,
            2.276781932345769e-03,
            4.860433222241686e-05,
        ],
        "Neptune": [
            1.676536611817232e-04,
            3.152098732861913e-03,
            -6.877501095688201e-05,
        ],
        "Moon": [
            -1.746667306153906e-02,
            -3.473438277358121e-03,
            -3.359028758606074e-05,
        ],
        "Pluto": [2.802810313667557e-03, 8.492056438614633e-04, -9.060790113327894e-04],
        "Ceres": [
            8.978653480111301e-03,
            -4.873256528198994e-03,
            -1.807162046049230e-03,
        ],
        "Vesta": [
            -1.017876585480054e-02,
            -5.452367109338154e-04,
            1.255870551153315e-03,
        ],
    }

    SOLAR_SYSTEM_COLORS = {
        "Sun": "orange",
        "Mercury": "slategrey",
        "Venus": "wheat",
        "Earth": "skyblue",
        "Mars": "red",
        "Jupiter": "darkgoldenrod",
        "Saturn": "gold",
        "Uranus": "paleturquoise",
        "Neptune": "blue",
    }

    SOLAR_SYSTEM_PLUS_COLORS = {
        "Sun": "orange",
        "Mercury": "slategrey",
        "Venus": "wheat",
        "Earth": "skyblue",
        "Mars": "red",
        "Jupiter": "darkgoldenrod",
        "Saturn": "gold",
        "Uranus": "paleturquoise",
        "Neptune": "blue",
        "Pluto": None,
        "Ceres": None,
        "Vesta": None,
    }

    if initial_condition == "pyth-3-body":
        # Pythagorean 3-body problem
        R1 = np.array([1.0, 3.0, 0.0])
        R2 = np.array([-2.0, -1.0, 0.0])
        R3 = np.array([1.0, -1.0, 0.0])
        V1 = np.array([0.0, 0.0, 0.0])
        V2 = np.array([0.0, 0.0, 0.0])
        V3 = np.array([0.0, 0.0, 0.0])

        x = np.array([R1, R2, R3])
        v = np.array([V1, V2, V3])
        m = np.array([3.0 / G, 4.0 / G, 5.0 / G])

        system = System(
            num_particles=len(m),
            x=x,
            v=v,
            m=m,
            G=G,
        )
        system.center_of_mass_correction()

        labels: List[Optional[str]] = [None, None, None]
        colors: List[Optional[str]] = [None, None, None]
        legend = False

        return system, labels, colors, legend

    elif initial_condition == "solar_system":
        m = np.array(
            [
                SOLAR_SYSTEM_MASSES["Sun"],
                SOLAR_SYSTEM_MASSES["Mercury"],
                SOLAR_SYSTEM_MASSES["Venus"],
                SOLAR_SYSTEM_MASSES["Earth"],
                SOLAR_SYSTEM_MASSES["Mars"],
                SOLAR_SYSTEM_MASSES["Jupiter"],
                SOLAR_SYSTEM_MASSES["Saturn"],
                SOLAR_SYSTEM_MASSES["Uranus"],
                SOLAR_SYSTEM_MASSES["Neptune"],
            ]
        )

        R1 = np.array(SOLAR_SYSTEM_POS["Sun"])
        R2 = np.array(SOLAR_SYSTEM_POS["Mercury"])
        R3 = np.array(SOLAR_SYSTEM_POS["Venus"])
        R4 = np.array(SOLAR_SYSTEM_POS["Earth"])
        R5 = np.array(SOLAR_SYSTEM_POS["Mars"])
        R6 = np.array(SOLAR_SYSTEM_POS["Jupiter"])
        R7 = np.array(SOLAR_SYSTEM_POS["Saturn"])
        R8 = np.array(SOLAR_SYSTEM_POS["Uranus"])
        R9 = np.array(SOLAR_SYSTEM_POS["Neptune"])

        V1 = np.array(SOLAR_SYSTEM_VEL["Sun"])
        V2 = np.array(SOLAR_SYSTEM_VEL["Mercury"])
        V3 = np.array(SOLAR_SYSTEM_VEL["Venus"])
        V4 = np.array(SOLAR_SYSTEM_VEL["Earth"])
        V5 = np.array(SOLAR_SYSTEM_VEL["Mars"])
        V6 = np.array(SOLAR_SYSTEM_VEL["Jupiter"])
        V7 = np.array(SOLAR_SYSTEM_VEL["Saturn"])
        V8 = np.array(SOLAR_SYSTEM_VEL["Uranus"])
        V9 = np.array(SOLAR_SYSTEM_VEL["Neptune"])

        x = np.array(
            [
                R1,
                R2,
                R3,
                R4,
                R5,
                R6,
                R7,
                R8,
                R9,
            ]
        )
        v = np.array(
            [
                V1,
                V2,
                V3,
                V4,
                V5,
                V6,
                V7,
                V8,
                V9,
            ]
        )

        system = System(
            num_particles=len(m),
            x=x,
            v=v,
            m=m,
            G=G,
        )
        system.center_of_mass_correction()

        labels = list(SOLAR_SYSTEM_POS.keys())
        colors = list(SOLAR_SYSTEM_COLORS.values())
        legend = True

        return system, labels, colors, legend

    elif initial_condition == "solar_system_plus":
        m = np.array(
            [
                SOLAR_SYSTEM_MASSES["Sun"],
                SOLAR_SYSTEM_MASSES["Mercury"],
                SOLAR_SYSTEM_MASSES["Venus"],
                SOLAR_SYSTEM_MASSES["Earth"],
                SOLAR_SYSTEM_MASSES["Mars"],
                SOLAR_SYSTEM_MASSES["Jupiter"],
                SOLAR_SYSTEM_MASSES["Saturn"],
                SOLAR_SYSTEM_MASSES["Uranus"],
                SOLAR_SYSTEM_MASSES["Neptune"],
                SOLAR_SYSTEM_MASSES["Pluto"],
                SOLAR_SYSTEM_MASSES["Ceres"],
                SOLAR_SYSTEM_MASSES["Vesta"],
            ]
        )

        R1 = np.array(SOLAR_SYSTEM_POS["Sun"])
        R2 = np.array(SOLAR_SYSTEM_POS["Mercury"])
        R3 = np.array(SOLAR_SYSTEM_POS["Venus"])
        R4 = np.array(SOLAR_SYSTEM_POS["Earth"])
        R5 = np.array(SOLAR_SYSTEM_POS["Mars"])
        R6 = np.array(SOLAR_SYSTEM_POS["Jupiter"])
        R7 = np.array(SOLAR_SYSTEM_POS["Saturn"])
        R8 = np.array(SOLAR_SYSTEM_POS["Uranus"])
        R9 = np.array(SOLAR_SYSTEM_POS["Neptune"])
        R10 = np.array(SOLAR_SYSTEM_POS["Pluto"])
        R11 = np.array(SOLAR_SYSTEM_POS["Ceres"])
        R12 = np.array(SOLAR_SYSTEM_POS["Vesta"])

        V1 = np.array(SOLAR_SYSTEM_VEL["Sun"])
        V2 = np.array(SOLAR_SYSTEM_VEL["Mercury"])
        V3 = np.array(SOLAR_SYSTEM_VEL["Venus"])
        V4 = np.array(SOLAR_SYSTEM_VEL["Earth"])
        V5 = np.array(SOLAR_SYSTEM_VEL["Mars"])
        V6 = np.array(SOLAR_SYSTEM_VEL["Jupiter"])
        V7 = np.array(SOLAR_SYSTEM_VEL["Saturn"])
        V8 = np.array(SOLAR_SYSTEM_VEL["Uranus"])
        V9 = np.array(SOLAR_SYSTEM_VEL["Neptune"])
        V10 = np.array(SOLAR_SYSTEM_VEL["Pluto"])
        V11 = np.array(SOLAR_SYSTEM_VEL["Ceres"])
        V12 = np.array(SOLAR_SYSTEM_VEL["Vesta"])

        x = np.array(
            [
                R1,
                R2,
                R3,
                R4,
                R5,
                R6,
                R7,
                R8,
                R9,
                R10,
                R11,
                R12,
            ]
        )
        v = np.array(
            [
                V1,
                V2,
                V3,
                V4,
                V5,
                V6,
                V7,
                V8,
                V9,
                V10,
                V11,
                V12,
            ]
        )

        system = System(
            num_particles=len(m),
            x=x,
            v=v,
            m=m,
            G=G,
        )
        system.center_of_mass_correction()

        labels = list(SOLAR_SYSTEM_POS.keys())
        colors = list(SOLAR_SYSTEM_PLUS_COLORS.values())
        legend = True

        return system, labels, colors, legend

    else:
        raise ValueError(f"Initial condition not recognized: {initial_condition}.")

Plotting initial conditions

Finally, we will implement a function to plot the initial conditions of the solar system. We will use the matplotlib package to plot the positions of the particles in 2D. Colors and labels are optional, but they make the plot look nicer. If plt.show() does not work in your environment, you may need to change it to plt.savefig(file_name) to save the plot.

common.py
def plot_initial_conditions(
    system: System,
    labels: list,
    colors: list,
    legend: bool,
) -> None:
    """
    Plot the initial positions.

    Parameters
    ----------
    system : System
        System object.
    labels : list
        Labels for the particles.
    colors : list
        Colors for the particles.
    legend : bool
        Whether to show the legend.
    """
    fig, ax = plt.subplots()
    ax.set_xlabel("$x$ (AU)")
    ax.set_ylabel("$y$ (AU)")

    for i in range(system.num_particles):
        ax.scatter(
            system.x[i, 0], system.x[i, 1], marker="o", color=colors[i], label=labels[i]
        )

    if legend:
        ax.legend()

    plt.show() # Here, you may need to change to plt.savefig(file_name) if
               # plt.show() does not work in your environment.

Test the code

Now we could try to run the code with step1.py.

step1.py
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
import common

INITIAL_CONDITION = "solar_system"


def main():
    # Get initial conditions
    system, labels, colors, legend = common.get_initial_conditions(INITIAL_CONDITION)
    print("Number of particles:", system.num_particles)
    print("Initial positions (AU):\n", system.x)
    print("Initial velocities (AU/day):\n", system.v)
    print("Masses (M_sun):\n", system.m)
    print("Gravitational constant (AU^3 / day^2 / M_sun):", system.G)

    # Plot the initial conditions
    common.plot_initial_conditions(
        system=system,
        labels=labels,
        colors=colors,
        legend=legend,
    )


if __name__ == "__main__":
    main()

As you run the code, you should see the following output:

Number of particles: 9
Initial positions (AU):
 [[-7.96712825e-03 -2.90611166e-03  2.10213120e-04]
 [-2.82597500e-01  1.97456095e-01  4.17742433e-02]
 [-7.23209543e-01 -7.94829045e-02  4.04286220e-02]
 [-1.73818374e-01  9.66324671e-01  1.55297876e-04]
 [-3.01325412e-01 -1.45402922e+00 -2.30054066e-02]
 [ 3.48520330e+00  3.55213702e+00 -9.27104467e-02]
 [ 8.98810505e+00 -3.71906474e+00 -2.93193870e-01]
 [ 1.22630250e+01  1.52973880e+01 -1.02054995e-01]
 [ 2.98350154e+01 -1.79381284e+00 -6.50640206e-01]]
Initial velocities (AU/day):
 [[ 4.87524241e-06 -7.05716139e-06 -4.57929038e-08]
 [-2.23216589e-02 -2.15720711e-02  2.85519283e-04]
 [ 2.03406835e-03 -2.02082863e-02 -3.94564043e-04]
 [-1.72300122e-02 -2.96772137e-03  6.38154172e-07]
 [ 1.42483227e-02 -1.57923621e-03 -3.82372338e-04]
 [-5.47097051e-03  5.64248731e-03  9.89618477e-05]
 [ 1.82201399e-03  5.14347040e-03 -1.61723649e-04]
 [-3.09761521e-03  2.27678190e-03  4.86042739e-05]
 [ 1.67653809e-04  3.15209870e-03 -6.87750693e-05]]
Masses (M_sun):
 [1.00000000e+00 1.66012083e-07 2.44783829e-06 3.00348962e-06
 3.22715608e-07 9.54791910e-04 2.85885670e-04 4.36624961e-05
 5.15138377e-05]
Gravitational constant (AU^3 / day^2 / M_sun): 0.00029591220828411956
You should also see the following plot:

Initial Condition

Full scripts

The full scripts are available at 5_steps_to_n_body_simulation/python/, or https://github.com/alvinng4/grav_sim/blob/main/5_steps_to_n_body_simulation/python/

step1.py (Click to expand)
5_steps_to_n_body_simulation/python/step1.py
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
import common

INITIAL_CONDITION = "solar_system"


def main():
    # Get initial conditions
    system, labels, colors, legend = common.get_initial_conditions(INITIAL_CONDITION)
    print("Number of particles:", system.num_particles)
    print("Initial positions (AU):\n", system.x)
    print("Initial velocities (AU/day):\n", system.v)
    print("Masses (M_sun):\n", system.m)
    print("Gravitational constant (AU^3 / day^2 / M_sun):", system.G)

    # Plot the initial conditions
    common.plot_initial_conditions(
        system=system,
        labels=labels,
        colors=colors,
        legend=legend,
    )


if __name__ == "__main__":
    main()
common.py (Click to expand)
5_steps_to_n_body_simulation/python/common.py
  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
408
409
410
411
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
427
428
429
430
431
432
433
434
435
436
437
438
439
440
441
442
443
444
445
446
447
448
449
450
451
452
453
454
455
456
457
458
459
460
461
462
463
464
465
466
467
468
469
470
471
472
473
474
475
476
477
478
479
480
481
482
483
484
485
486
487
488
489
490
491
492
493
494
495
496
497
498
499
500
501
502
503
504
505
506
507
508
509
510
511
512
513
514
515
516
517
518
519
520
521
522
523
524
525
526
527
528
529
530
531
532
533
534
535
536
537
538
539
540
541
542
543
544
545
546
547
548
549
550
551
552
553
554
555
556
557
558
559
560
561
562
563
564
565
566
567
568
569
570
571
572
573
574
575
576
577
578
579
580
581
582
583
584
585
586
587
588
589
590
591
592
593
594
595
596
597
598
599
600
601
602
603
604
605
606
607
608
609
610
611
612
613
614
615
616
617
618
619
620
621
622
623
624
625
626
627
628
629
630
631
632
633
634
635
636
637
638
639
640
641
642
643
644
645
646
647
648
649
650
651
652
653
654
655
656
657
658
659
660
661
662
663
664
665
666
667
668
669
670
671
672
673
674
675
676
677
678
679
680
681
682
683
684
685
686
687
688
689
690
691
692
693
694
695
696
697
698
699
700
701
702
703
704
705
706
707
708
709
710
711
712
713
714
715
716
717
718
719
720
721
722
723
724
725
726
727
728
729
730
731
732
733
734
735
736
737
738
739
740
741
742
743
744
745
746
747
748
749
750
751
752
753
754
755
756
757
758
759
760
761
762
763
764
765
766
767
768
769
770
771
772
773
774
775
776
777
778
779
780
781
782
783
784
785
786
787
788
789
790
791
792
793
794
795
796
797
798
799
800
801
802
803
804
805
806
807
808
809
810
811
812
813
814
815
816
817
818
819
820
821
822
823
824
825
826
827
828
829
830
831
832
833
834
835
836
837
838
839
840
841
842
843
844
845
846
847
848
849
850
851
852
853
854
855
856
857
858
859
860
861
862
863
864
865
866
867
868
869
870
871
872
873
874
from typing import Tuple, List, Optional

import numpy as np
import matplotlib.pyplot as plt


##### Step 1 #####
class System:
    def __init__(
        self, num_particles: int, x: np.ndarray, v: np.ndarray, m: np.ndarray, G: float
    ) -> None:
        self.num_particles = num_particles
        self.x = x
        self.v = v
        self.m = m
        self.G = G

    def center_of_mass_correction(self) -> None:
        """Set center of mass of position and velocity to zero"""
        M = np.sum(self.m)
        x_cm = np.einsum("i,ij->j", self.m, self.x) / M
        v_cm = np.einsum("i,ij->j", self.m, self.v) / M

        self.x -= x_cm
        self.v -= v_cm


def get_initial_conditions(
    initial_condition: str,
) -> Tuple[System, List[Optional[str]], List[Optional[str]], bool]:
    """
    Returns the initial conditions for solar system,
    with units AU, days, and M_sun.

    Parameters
    ----------
    initial_condition : str
        Name for the initial condition.

    Returns
    -------
    system: System
        System object with initial conditions.
    labels: list
        Labels for the particles.
    colors: list
        Colors for the particles.
    legend: bool
        Whether to show the legend.
    """
    # Conversion factor from km^3 s^-2 to AU^3 d^-2
    CONVERSION_FACTOR = (86400**2) / (149597870.7**3)

    # GM values (km^3 s^-2)
    # ref: https://ssd.jpl.nasa.gov/doc/Park.2021.AJ.DE440.pdf
    GM_KM_S = {
        "Sun": 132712440041.279419,
        "Mercury": 22031.868551,
        "Venus": 324858.592000,
        "Earth": 398600.435507,
        "Mars": 42828.375816,
        "Jupiter": 126712764.100000,
        "Saturn": 37940584.841800,
        "Uranus": 5794556.400000,
        "Neptune": 6836527.100580,
        "Moon": 4902.800118,
        "Pluto": 975.500000,
        "Ceres": 62.62890,
        "Vesta": 17.288245,
    }

    # GM values (AU^3 d^-2)
    GM_AU_DAY = {
        "Sun": 132712440041.279419 * CONVERSION_FACTOR,
        "Mercury": 22031.868551 * CONVERSION_FACTOR,
        "Venus": 324858.592000 * CONVERSION_FACTOR,
        "Earth": 398600.435507 * CONVERSION_FACTOR,
        "Mars": 42828.375816 * CONVERSION_FACTOR,
        "Jupiter": 126712764.100000 * CONVERSION_FACTOR,
        "Saturn": 37940584.841800 * CONVERSION_FACTOR,
        "Uranus": 5794556.400000 * CONVERSION_FACTOR,
        "Neptune": 6836527.100580 * CONVERSION_FACTOR,
        "Moon": 4902.800118 * CONVERSION_FACTOR,
        "Pluto": 975.500000 * CONVERSION_FACTOR,
        "Ceres": 62.62890 * CONVERSION_FACTOR,
        "Vesta": 17.288245 * CONVERSION_FACTOR,
    }

    # Solar system masses (M_sun^-1)
    SOLAR_SYSTEM_MASSES = {
        "Sun": 1.0,
        "Mercury": GM_KM_S["Mercury"] / GM_KM_S["Sun"],
        "Venus": GM_KM_S["Venus"] / GM_KM_S["Sun"],
        "Earth": GM_KM_S["Earth"] / GM_KM_S["Sun"],
        "Mars": GM_KM_S["Mars"] / GM_KM_S["Sun"],
        "Jupiter": GM_KM_S["Jupiter"] / GM_KM_S["Sun"],
        "Saturn": GM_KM_S["Saturn"] / GM_KM_S["Sun"],
        "Uranus": GM_KM_S["Uranus"] / GM_KM_S["Sun"],
        "Neptune": GM_KM_S["Neptune"] / GM_KM_S["Sun"],
        "Moon": GM_KM_S["Moon"] / GM_KM_S["Sun"],
        "Pluto": GM_KM_S["Pluto"] / GM_KM_S["Sun"],
        "Ceres": GM_KM_S["Ceres"] / GM_KM_S["Sun"],
        "Vesta": GM_KM_S["Vesta"] / GM_KM_S["Sun"],
    }

    G = GM_AU_DAY["Sun"]

    # Solar system position and velocities data
    # Units: AU-D
    # Coordinate center: Solar System Barycenter
    # Data dated on A.D. 2024-Jan-01 00:00:00.0000 TDB
    # Computational data generated by NASA JPL Horizons System https://ssd.jpl.nasa.gov/horizons/
    SOLAR_SYSTEM_POS = {
        "Sun": [-7.967955691533730e-03, -2.906227441573178e-03, 2.103054301547123e-04],
        "Mercury": [
            -2.825983269538632e-01,
            1.974559795958082e-01,
            4.177433558063677e-02,
        ],
        "Venus": [
            -7.232103701666379e-01,
            -7.948302026312400e-02,
            4.042871428174315e-02,
        ],
        "Earth": [-1.738192017257054e-01, 9.663245550235138e-01, 1.553901854897183e-04],
        "Mars": [-3.013262392582653e-01, -1.454029331393295e00, -2.300531433991428e-02],
        "Jupiter": [3.485202469657674e00, 3.552136904413157e00, -9.271035442798399e-02],
        "Saturn": [8.988104223143450e00, -3.719064854634689e00, -2.931937777323593e-01],
        "Uranus": [1.226302417897505e01, 1.529738792480545e01, -1.020549026883563e-01],
        "Neptune": [
            2.983501460984741e01,
            -1.793812957956852e00,
            -6.506401132254588e-01,
        ],
        "Moon": [-1.762788124769829e-01, 9.674377513177153e-01, 3.236901585768862e-04],
        "Pluto": [1.720200478843485e01, -3.034155683573043e01, -1.729127607100611e00],
        "Ceres": [-1.103880510367569e00, -2.533340440444230e00, 1.220283937721780e-01],
        "Vesta": [-8.092549658731499e-02, 2.558381434460076e00, -6.695836142398572e-02],
    }
    SOLAR_SYSTEM_VEL = {
        "Sun": [4.875094764261564e-06, -7.057133213976680e-06, -4.573453713094512e-08],
        "Mercury": [
            -2.232165900189702e-02,
            -2.157207103176252e-02,
            2.855193410495743e-04,
        ],
        "Venus": [
            2.034068201002341e-03,
            -2.020828626592994e-02,
            -3.945639843855159e-04,
        ],
        "Earth": [
            -1.723001232538228e-02,
            -2.967721342618870e-03,
            6.382125383116755e-07,
        ],
        "Mars": [1.424832259345280e-02, -1.579236181580905e-03, -3.823722796161561e-04],
        "Jupiter": [
            -5.470970658852281e-03,
            5.642487338479145e-03,
            9.896190602066252e-05,
        ],
        "Saturn": [
            1.822013845554067e-03,
            5.143470425888054e-03,
            -1.617235904887937e-04,
        ],
        "Uranus": [
            -3.097615358317413e-03,
            2.276781932345769e-03,
            4.860433222241686e-05,
        ],
        "Neptune": [
            1.676536611817232e-04,
            3.152098732861913e-03,
            -6.877501095688201e-05,
        ],
        "Moon": [
            -1.746667306153906e-02,
            -3.473438277358121e-03,
            -3.359028758606074e-05,
        ],
        "Pluto": [2.802810313667557e-03, 8.492056438614633e-04, -9.060790113327894e-04],
        "Ceres": [
            8.978653480111301e-03,
            -4.873256528198994e-03,
            -1.807162046049230e-03,
        ],
        "Vesta": [
            -1.017876585480054e-02,
            -5.452367109338154e-04,
            1.255870551153315e-03,
        ],
    }

    SOLAR_SYSTEM_COLORS = {
        "Sun": "orange",
        "Mercury": "slategrey",
        "Venus": "wheat",
        "Earth": "skyblue",
        "Mars": "red",
        "Jupiter": "darkgoldenrod",
        "Saturn": "gold",
        "Uranus": "paleturquoise",
        "Neptune": "blue",
    }

    SOLAR_SYSTEM_PLUS_COLORS = {
        "Sun": "orange",
        "Mercury": "slategrey",
        "Venus": "wheat",
        "Earth": "skyblue",
        "Mars": "red",
        "Jupiter": "darkgoldenrod",
        "Saturn": "gold",
        "Uranus": "paleturquoise",
        "Neptune": "blue",
        "Pluto": None,
        "Ceres": None,
        "Vesta": None,
    }

    if initial_condition == "pyth-3-body":
        # Pythagorean 3-body problem
        R1 = np.array([1.0, 3.0, 0.0])
        R2 = np.array([-2.0, -1.0, 0.0])
        R3 = np.array([1.0, -1.0, 0.0])
        V1 = np.array([0.0, 0.0, 0.0])
        V2 = np.array([0.0, 0.0, 0.0])
        V3 = np.array([0.0, 0.0, 0.0])

        x = np.array([R1, R2, R3])
        v = np.array([V1, V2, V3])
        m = np.array([3.0 / G, 4.0 / G, 5.0 / G])

        system = System(
            num_particles=len(m),
            x=x,
            v=v,
            m=m,
            G=G,
        )
        system.center_of_mass_correction()

        labels: List[Optional[str]] = [None, None, None]
        colors: List[Optional[str]] = [None, None, None]
        legend = False

        return system, labels, colors, legend

    elif initial_condition == "solar_system":
        m = np.array(
            [
                SOLAR_SYSTEM_MASSES["Sun"],
                SOLAR_SYSTEM_MASSES["Mercury"],
                SOLAR_SYSTEM_MASSES["Venus"],
                SOLAR_SYSTEM_MASSES["Earth"],
                SOLAR_SYSTEM_MASSES["Mars"],
                SOLAR_SYSTEM_MASSES["Jupiter"],
                SOLAR_SYSTEM_MASSES["Saturn"],
                SOLAR_SYSTEM_MASSES["Uranus"],
                SOLAR_SYSTEM_MASSES["Neptune"],
            ]
        )

        R1 = np.array(SOLAR_SYSTEM_POS["Sun"])
        R2 = np.array(SOLAR_SYSTEM_POS["Mercury"])
        R3 = np.array(SOLAR_SYSTEM_POS["Venus"])
        R4 = np.array(SOLAR_SYSTEM_POS["Earth"])
        R5 = np.array(SOLAR_SYSTEM_POS["Mars"])
        R6 = np.array(SOLAR_SYSTEM_POS["Jupiter"])
        R7 = np.array(SOLAR_SYSTEM_POS["Saturn"])
        R8 = np.array(SOLAR_SYSTEM_POS["Uranus"])
        R9 = np.array(SOLAR_SYSTEM_POS["Neptune"])

        V1 = np.array(SOLAR_SYSTEM_VEL["Sun"])
        V2 = np.array(SOLAR_SYSTEM_VEL["Mercury"])
        V3 = np.array(SOLAR_SYSTEM_VEL["Venus"])
        V4 = np.array(SOLAR_SYSTEM_VEL["Earth"])
        V5 = np.array(SOLAR_SYSTEM_VEL["Mars"])
        V6 = np.array(SOLAR_SYSTEM_VEL["Jupiter"])
        V7 = np.array(SOLAR_SYSTEM_VEL["Saturn"])
        V8 = np.array(SOLAR_SYSTEM_VEL["Uranus"])
        V9 = np.array(SOLAR_SYSTEM_VEL["Neptune"])

        x = np.array(
            [
                R1,
                R2,
                R3,
                R4,
                R5,
                R6,
                R7,
                R8,
                R9,
            ]
        )
        v = np.array(
            [
                V1,
                V2,
                V3,
                V4,
                V5,
                V6,
                V7,
                V8,
                V9,
            ]
        )

        system = System(
            num_particles=len(m),
            x=x,
            v=v,
            m=m,
            G=G,
        )
        system.center_of_mass_correction()

        labels = list(SOLAR_SYSTEM_COLORS.keys())
        colors = list(SOLAR_SYSTEM_COLORS.values())
        legend = True

        return system, labels, colors, legend

    elif initial_condition == "solar_system_plus":
        m = np.array(
            [
                SOLAR_SYSTEM_MASSES["Sun"],
                SOLAR_SYSTEM_MASSES["Mercury"],
                SOLAR_SYSTEM_MASSES["Venus"],
                SOLAR_SYSTEM_MASSES["Earth"],
                SOLAR_SYSTEM_MASSES["Mars"],
                SOLAR_SYSTEM_MASSES["Jupiter"],
                SOLAR_SYSTEM_MASSES["Saturn"],
                SOLAR_SYSTEM_MASSES["Uranus"],
                SOLAR_SYSTEM_MASSES["Neptune"],
                SOLAR_SYSTEM_MASSES["Pluto"],
                SOLAR_SYSTEM_MASSES["Ceres"],
                SOLAR_SYSTEM_MASSES["Vesta"],
            ]
        )

        R1 = np.array(SOLAR_SYSTEM_POS["Sun"])
        R2 = np.array(SOLAR_SYSTEM_POS["Mercury"])
        R3 = np.array(SOLAR_SYSTEM_POS["Venus"])
        R4 = np.array(SOLAR_SYSTEM_POS["Earth"])
        R5 = np.array(SOLAR_SYSTEM_POS["Mars"])
        R6 = np.array(SOLAR_SYSTEM_POS["Jupiter"])
        R7 = np.array(SOLAR_SYSTEM_POS["Saturn"])
        R8 = np.array(SOLAR_SYSTEM_POS["Uranus"])
        R9 = np.array(SOLAR_SYSTEM_POS["Neptune"])
        R10 = np.array(SOLAR_SYSTEM_POS["Pluto"])
        R11 = np.array(SOLAR_SYSTEM_POS["Ceres"])
        R12 = np.array(SOLAR_SYSTEM_POS["Vesta"])

        V1 = np.array(SOLAR_SYSTEM_VEL["Sun"])
        V2 = np.array(SOLAR_SYSTEM_VEL["Mercury"])
        V3 = np.array(SOLAR_SYSTEM_VEL["Venus"])
        V4 = np.array(SOLAR_SYSTEM_VEL["Earth"])
        V5 = np.array(SOLAR_SYSTEM_VEL["Mars"])
        V6 = np.array(SOLAR_SYSTEM_VEL["Jupiter"])
        V7 = np.array(SOLAR_SYSTEM_VEL["Saturn"])
        V8 = np.array(SOLAR_SYSTEM_VEL["Uranus"])
        V9 = np.array(SOLAR_SYSTEM_VEL["Neptune"])
        V10 = np.array(SOLAR_SYSTEM_VEL["Pluto"])
        V11 = np.array(SOLAR_SYSTEM_VEL["Ceres"])
        V12 = np.array(SOLAR_SYSTEM_VEL["Vesta"])

        x = np.array(
            [
                R1,
                R2,
                R3,
                R4,
                R5,
                R6,
                R7,
                R8,
                R9,
                R10,
                R11,
                R12,
            ]
        )
        v = np.array(
            [
                V1,
                V2,
                V3,
                V4,
                V5,
                V6,
                V7,
                V8,
                V9,
                V10,
                V11,
                V12,
            ]
        )

        system = System(
            num_particles=len(m),
            x=x,
            v=v,
            m=m,
            G=G,
        )
        system.center_of_mass_correction()

        labels = list(SOLAR_SYSTEM_PLUS_COLORS.keys())
        colors = list(SOLAR_SYSTEM_PLUS_COLORS.values())
        legend = True

        return system, labels, colors, legend

    else:
        raise ValueError(f"Initial condition not recognized: {initial_condition}.")


def plot_initial_conditions(
    system: System,
    labels: list,
    colors: list,
    legend: bool,
) -> None:
    """
    Plot the initial positions.

    Parameters
    ----------
    system : System
        System object.
    labels : list
        Labels for the particles.
    colors : list
        Colors for the particles.
    legend : bool
        Whether to show the legend.
    """
    fig, ax = plt.subplots()
    ax.set_xlabel("$x$ (AU)")
    ax.set_ylabel("$y$ (AU)")

    for i in range(system.num_particles):
        ax.scatter(
            system.x[i, 0], system.x[i, 1], marker="o", color=colors[i], label=labels[i]
        )

    if legend:
        ax.legend()

    plt.show()


##### Step 2 #####
def acceleration(
    a: np.ndarray,
    system: System,
) -> None:
    """
    Compute the gravitational acceleration

    Parameters
    ----------
    a : np.ndarray
        Gravitational accelerations array to be modified in-place,
        with shape (N, 3)
    system : System
        System object.
    """
    # Empty acceleration array
    a.fill(0.0)

    # Declare variables
    x = system.x
    m = system.m
    G = system.G

    # Compute the displacement vector
    r_ij = x[:, np.newaxis, :] - x[np.newaxis, :, :]

    # Compute the distance
    r_norm = np.linalg.norm(r_ij, axis=2)

    # Compute 1 / r^3
    with np.errstate(divide="ignore", invalid="ignore"):
        inv_r_cubed = 1.0 / (r_norm * r_norm * r_norm)

    # Set diagonal elements to 0 to avoid self-interaction
    np.fill_diagonal(inv_r_cubed, 0.0)

    # Compute the acceleration
    a[:] = G * np.einsum("ijk,ij,i->jk", r_ij, inv_r_cubed, m)


##### Step 3 #####
def euler(a: np.ndarray, system: System, dt: float) -> None:
    """
    Advance one step with the Euler's method.

    Parameters
    ----------
    a : np.ndarray
        Gravitational accelerations array with shape (N, 3).
    system : System
        System object.
    dt : float
        Time step.
    """
    acceleration(a, system)
    system.x += system.v * dt
    system.v += a * dt


def print_simulation_info_fixed_step_size(
    system: System,
    tf: float,
    dt: float,
    num_steps: int,
    output_interval: float,
    sol_size: int,
) -> None:
    print("----------------------------------------------------------")
    print("Simulation Info:")
    print(f"num_particles: {system.num_particles}")
    print(f"G: {system.G}")
    print(f"tf: {tf} days (Actual tf = dt * num_steps = {dt * num_steps} days)")
    print(f"dt: {dt} days")
    print(f"Num_steps: {num_steps}")
    print()
    print(f"Output interval: {output_interval} days")
    print(f"Estimated solution size: {sol_size}")
    print("----------------------------------------------------------")


def plot_trajectory(
    sol_x: np.ndarray,
    labels: list,
    colors: list,
    legend: bool,
) -> None:
    """
    Plot the 2D trajectory.

    Parameters
    ----------
    sol_x : np.ndarray
        Solution position array with shape (N_steps, num_particles, 3).
    labels : list
        List of labels for the particles.
    colors : list
        List of colors for the particles.
    legend : bool
        Whether to show the legend.
    """
    fig = plt.figure()
    ax = fig.add_subplot(111, aspect="equal")
    ax.set_xlabel("$x$ (AU)")
    ax.set_ylabel("$y$ (AU)")

    for i in range(sol_x.shape[1]):
        traj = ax.plot(
            sol_x[:, i, 0],
            sol_x[:, i, 1],
            color=colors[i],
        )
        # Plot the last position with marker
        ax.scatter(
            sol_x[-1, i, 0],
            sol_x[-1, i, 1],
            marker="o",
            color=traj[0].get_color(),
            label=labels[i],
        )

    if legend:
        fig.legend(loc="center right", borderaxespad=0.2)
        fig.tight_layout()

    plt.show()


##### Step 4 #####
def compute_rel_energy_error(
    sol_x: np.ndarray, sol_v: np.ndarray, system: System
) -> np.ndarray:
    """
    Compute the relative energy error of the simulation.

    Parameters
    ----------
    sol_x : np.ndarray
        Solution position array with shape (N_steps, num_particles, 3).
    sol_v : np.ndarray
        Solution velocity array with shape (N_steps, num_particles, 3).
    system : System
        System object.

    Returns
    -------
    energy_error : np.ndarray
        Relative energy error of the simulation, with shape (N_steps,).
    """
    # Allocate memory and initialize arrays
    n_steps = sol_x.shape[0]
    num_particles = system.num_particles
    m = system.m
    G = system.G
    rel_energy_error = np.zeros(n_steps)

    # Compute the total energy (KE + PE)
    for count in range(n_steps):
        x = sol_x[count]
        v = sol_v[count]
        for i in range(num_particles):
            # KE
            rel_energy_error[count] += 0.5 * m[i] * np.linalg.norm(v[i]) ** 2
            # PE
            for j in range(i + 1, num_particles):
                rel_energy_error[count] -= G * m[i] * m[j] / np.linalg.norm(x[i] - x[j])

    # Compute the relative energy error
    initial_energy = rel_energy_error[0]
    rel_energy_error = (rel_energy_error - initial_energy) / initial_energy
    rel_energy_error = np.abs(rel_energy_error)

    return rel_energy_error


def plot_rel_energy_error(rel_energy_error: np.ndarray, sol_t: np.ndarray) -> None:
    """
    Plot the relative energy error.

    Parameters
    ----------
    rel_energy_error : np.ndarray
        Relative energy error of the simulation, with shape (N_steps,).
    sol_t : np.ndarray
        Solution time array with shape (N_steps,).
    """
    plt.figure()
    plt.plot(sol_t, rel_energy_error)
    plt.yscale("log")
    plt.xlabel("Time step")
    plt.ylabel("Relative Energy Error")
    plt.title("Relative Energy Error vs Time Step")
    plt.show()


def euler_cromer(a: np.ndarray, system: System, dt: float) -> None:
    """
    Advance one step with the Euler-Cromer method.

    Parameters
    ----------
    a : np.ndarray
        Gravitational accelerations array with shape (N, 3).
    system : System
        System object.
    dt : float
        Time step.
    """
    acceleration(a, system)
    system.v += a * dt
    system.x += system.v * dt


def rk4(a: np.ndarray, system: System, dt: float) -> None:
    """
    Advance one step with the RK4 method.

    Parameters
    ----------
    a : np.ndarray
        Gravitational accelerations array with shape (N, 3).
    system : System
        System object.
    dt : float
        Time step.
    """
    num_stages = 4
    coeff = np.array([0.5, 0.5, 1.0])
    weights = np.array([1.0, 2.0, 2.0, 1.0]) / 6.0

    # Allocate memory and initialize arrays
    x0 = system.x.copy()
    v0 = system.v.copy()
    xk = np.zeros((num_stages, system.num_particles, 3))
    vk = np.zeros((num_stages, system.num_particles, 3))

    # Initial stage
    acceleration(a, system)
    xk[0] = v0
    vk[0] = a

    # Compute the stages
    for stage in range(1, num_stages):
        # Compute acceleration
        system.x = x0 + dt * coeff[stage - 1] * xk[stage - 1]
        acceleration(a, system)

        # Compute xk and vk
        xk[stage] = v0 + dt * coeff[stage - 1] * vk[stage - 1]
        vk[stage] = a

    # Advance step
    # dx = 0.0
    # dv = 0.0
    # for stage in range(num_stages):
    #     dx += weights[stage] * xk[stage]
    #     dv += weights[stage] * vk[stage]

    dx = np.einsum("i,ijk->jk", weights, xk)
    dv = np.einsum("i,ijk->jk", weights, vk)

    system.x = x0 + dt * dx
    system.v = v0 + dt * dv


def leapfrog(a: np.ndarray, system: System, dt: float) -> None:
    """
    Advance one step with the LeapFrog method.

    Parameters
    ----------
    a : np.ndarray
        Gravitational accelerations array with shape (N, 3).
    system : System
        System object.
    dt : float
        Time step.
    """
    # Velocity kick (v_1/2)
    acceleration(a, system)
    system.v += a * 0.5 * dt

    # Position drift (x_1)
    system.x += system.v * dt

    # Velocity kick (v_1)
    acceleration(a, system)
    system.v += a * 0.5 * dt


##### Step 5 #####
def print_simulation_info_adaptive_step_size(
    system: System,
    tf: float,
    tolerance: float,
    initial_dt: float,
    output_interval: float,
    sol_size: int,
) -> None:
    print("----------------------------------------------------------")
    print("Simulation Info:")
    print(f"num_particles: {system.num_particles}")
    print(f"G: {system.G}")
    print(f"tf: {tf} days")
    print(f"tolerance: {tolerance}")
    print(f"Initial dt: {initial_dt} days")
    print()
    print(f"Output interval: {output_interval} days")
    print(f"Estimated solution size: {sol_size}")
    print("----------------------------------------------------------")


def plot_dt(sol_dt: np.ndarray, sol_t: np.ndarray) -> None:
    """
    Plot the time step.

    Parameters
    ----------
    sol_dt : np.ndarray
        Time step array with shape (N_steps,).
    sol_t : np.ndarray
        Solution time array with shape (N_steps,).
    """
    plt.figure()
    plt.semilogy(sol_t, sol_dt)
    plt.xlabel("Time")
    plt.ylabel("dt")
    plt.show()


##### Extra #####
def set_3d_axes_equal(ax: plt.Axes) -> None:
    """
    Make axes of 3D plot have equal scale

    Parameters
    ----------
    ax : matplotlib axis
        The axis to set equal scale

    Reference
    ---------
    karlo, https://stackoverflow.com/questions/13685386/how-to-set-the-equal-aspect-ratio-for-all-axes-x-y-z
    """

    x_limits = ax.get_xlim3d()  # type: ignore
    y_limits = ax.get_ylim3d()  # type: ignore
    z_limits = ax.get_zlim3d()  # type: ignore

    x_range = abs(x_limits[1] - x_limits[0])
    x_middle = np.mean(x_limits)
    y_range = abs(y_limits[1] - y_limits[0])
    y_middle = np.mean(y_limits)
    z_range = abs(z_limits[1] - z_limits[0])
    z_middle = np.mean(z_limits)

    # The plot bounding box is a sphere in the sense of the infinity
    # norm, hence I call half the max range the plot radius.
    plot_radius = 0.5 * max([x_range, y_range, z_range])

    ax.set_xlim3d([x_middle - plot_radius, x_middle + plot_radius])  # type: ignore
    ax.set_ylim3d([y_middle - plot_radius, y_middle + plot_radius])  # type: ignore
    ax.set_zlim3d([z_middle - plot_radius, z_middle + plot_radius])  # type: ignore


def plot_3d_trajectory(
    sol_x: np.ndarray,
    labels: list,
    colors: list,
    legend: bool,
) -> None:
    """
    Plot the 3D trajectory.

    Parameters
    ----------
    sol_x : np.ndarray
        Solution position array with shape (N_steps, num_particles, 3).
    labels : list
        List of labels for the particles.
    colors : list
        List of colors for the particles.
    legend : bool
        Whether to show the legend.
    """

    fig = plt.figure()
    ax = fig.add_subplot(111, projection="3d")
    ax.set_xlabel("$x$ (AU)")
    ax.set_ylabel("$y$ (AU)")
    ax.set_zlabel("$z$ (AU)")  # type: ignore

    for i in range(sol_x.shape[1]):
        traj = ax.plot(
            sol_x[:, i, 0],
            sol_x[:, i, 1],
            sol_x[:, i, 2],
            color=colors[i],
        )
        # Plot the last position with marker
        ax.scatter(
            sol_x[-1, i, 0],
            sol_x[-1, i, 1],
            sol_x[-1, i, 2],
            marker="o",
            color=traj[0].get_color(),
            label=labels[i],
        )

    set_3d_axes_equal(ax)

    if legend:
        ax.legend(loc="center right", bbox_to_anchor=(1.325, 0.5))
        fig.subplots_adjust(right=0.7)

    plt.show()

  1. Jet Propulsion Laboratory. Horizons system. 2024. Accessed: April 2024. URL: https://ssd.jpl.nasa.gov/horizons/. ↩

  2. Ryan S. Park, William M. Folkner, James G. Williams, and Dale H. Boggs. The jpl planetary and lunar ephemerides de440 and de441. The Astronomical Journal, 161(3):105, feb 2021. doi:10.3847/1538-3881/abd414. ↩

Comments
