Step 5: Adaptive time-stepping

In this step, we will implement an adaptive time-stepping integrator Runge-Kutta-Fehlberg (RKF) method, which belongs to the same family to the RK4 method we implemented in the previous step.

RKF4(5) method

To achieve adaptive time-stepping, we need some way to determine the error of each time step in order to adjust the time step accordingly. For RKF4(5), we have a fourth-order method that is used for the actual update

\[ x_{n + 1} = x_n + \left( \frac{25}{216} k_1 + \frac{1408}{2565} k_3 + \frac{2197}{4104} k_4 - \frac{1}{5} k_5 \right) \Delta t, \]

and a fifth-order method to determine the error

\[ \tilde{x}_{n + 1} = x_n + \left( \frac{16}{135} k_1 + \frac{6656}{12825} k_3 + \frac{28561}{56430} k_4 - \frac{9}{50} k_5 + \frac{2}{55} k_6 \right) \Delta t. \]

The difference between these two methods can gives us an error estimation. Since the \(k\) between both methods mostly overlaps, we are able to obtain an error estimation with a very small additional cost. They are given as follows:

\[ \begin{aligned} k_1 &= f(t_n, x_n), \\ k_2 &= f\left(t_n + \frac{1}{4} \Delta t, x_n + \frac{1}{4} k_1 \Delta t\right), \\ k_3 &= f\left(t_n + \frac{3}{8} \Delta t, x_n + \left(\frac{3}{32} k_1 + \frac{9}{32} k_2 \right) \Delta t \right), \\ k_4 &= f\left(t_n + \frac{12}{13} \Delta t, x_n + \left(\frac{1932}{2197} k_1 - \frac{7200}{2197} k_2 + \frac{7296}{2197} k_3\right) \Delta t\right), \\ k_5 &= f\left(t_n + \Delta t, x_n + \left(\frac{439}{216} k_1 - 8 k_2 + \frac{3680}{513} k_3 - \frac{845}{4104} k_4\right) \Delta t\right), \\ k_6 &= f\left(t_n + \frac{1}{2} \Delta t, x_n + \left(- \frac{8}{27} k_1 + 2 k_2 - \frac{3544}{2565} k_3 + \frac{1859}{4104} k_4 - \frac{11}{40} k_5\right) \Delta t\right). \end{aligned} \]

This gives the following code:

    # RKF4(5) coefficients
    coeff = np.array((
        [1.0 / 4.0, 0.0, 0.0, 0.0, 0.0],
        [3.0 / 32.0, 9.0 / 32.0, 0.0, 0.0, 0.0],
        [1932.0 / 2197.0, -7200.0 / 2197.0, 7296.0 / 2197.0, 0.0, 0.0],
        [439.0 / 216.0, -8.0, 3680.0 / 513.0, -845.0 / 4104.0, 0.0],
        [-8.0 / 27.0, 2.0, -3544.0 / 2565.0, 1859.0 / 4104.0, -11.0 / 40.0],
    ))
    weights = np.array(
        [25.0 / 216.0, 0.0, 1408.0 / 2565.0, 2197.0 / 4104.0, -1.0 / 5.0, 0.0]
    )
    weights_test = np.array(
        [
            16.0 / 135.0,
            0.0,
            6656.0 / 12825.0,
            28561.0 / 56430.0,
            -9.0 / 50.0,
            2.0 / 55.0,
        ]
    )
    min_power = 4
    num_stages = len(weights)

Error estimation

First, let us define a tolerance parameter \(\varepsilon\). This is a user-defined parameter to control the time step (Smaller \(\varepsilon\) means smaller time step). Now, we define a \(\Delta x'\) as the difference between the two RK methods (we call it error_estimation_delta in our code)

\[ \Delta x' = \Delta x - \Delta \tilde{x}. \]

# Calculate x_1, v_1 and also delta x, delta v for error estimation
x_1[:] = system.x
v_1[:] = system.v
error_estimation_delta_x.fill(0.0)
error_estimation_delta_v.fill(0.0)
for stage in range(num_stages):
    x_1[:] += dt * weights[stage] * xk[stage]
    v_1[:] += dt * weights[stage] * vk[stage]
    error_estimation_delta_x[:] += (
        dt * (weights[stage] - weights_test[stage]) * xk[stage]
    )
    error_estimation_delta_v[:] += (
        dt * (weights[stage] - weights_test[stage]) * vk[stage]
    )

Then, we compute \(\mathbf{s}\) as follows (we call it tolerance_scale in our code):

\[ \mathbf{s}_{i} = \varepsilon + \varepsilon \times \begin{bmatrix} \max(|x_{n, i}|, |x_{n +1, i}|) \\ \max(|y_{n, i}|, |y_{n +1, i}|) \\ \max(|z_{n, i}|, |z_{n +1, i}|) \end{bmatrix}, \quad i = 1, \ldots, N. \]

# Error estimation
tolerance_scale_x[:] = (
    TOLERANCE + np.maximum(np.abs(system.x), np.abs(x_1)) * TOLERANCE
)
tolerance_scale_v[:] = (
    TOLERANCE + np.maximum(np.abs(system.v), np.abs(v_1)) * TOLERANCE
)

Finally, we compute the error by taking the "norm":

\[ \text{error} = \sqrt{\overline{\left( \frac{\Delta x'}{\mathbf{s}} \right)^2}}. \]

The bar over the sum means that we take the average over all elements we summed over (In case I am not clear, just look at the code below). The denominator in the final line of code is system.num_particles * 3.0 * 2.0 because we have \(N\) particles, each with 3 dimensions, and we have two arrays \(\mathbf{r}\) and \(\mathbf{v}\).

total = np.sum(np.square(error_estimation_delta_x / tolerance_scale_x)) + np.sum(
    np.square(error_estimation_delta_v / tolerance_scale_v)
)
error = math.sqrt(total / (system.num_particles * 3.0 * 2.0))

The new step is accepted if the error is less than or equal to 1.0. Otherwise, we will reject the step and try again with a smaller time step.

Time step estimation

With the error, we can now estimate the new time step. We will use the following formula:

\[ \Delta t_{n + 1} = 0.38^{1 / (1 + q)} \times \Delta t_n \times \text{error}^{-1 / (1 + q)}, \]

where \(q\) is the lowest power of the two methods (4 in our case). We also need to make sure that the new time step is not too small or too large. We can do this by setting

Safety factor safety_fac_max = 6.0 and safety_fac_min = 0.33 so that \(f_{\text{max}} \Delta t_{n + 1} \leq \Delta t_{n + 1} \leq f_{\text{min}} \Delta t_{n + 1}\).
Lower bound of \(\Delta t\) such that \(\Delta t_{n + 1} \geq 10^{-12} (t_f - t_0)\).
Lower bound of error such that \(\text{error} \geq 10^{-12}\).

We have the following code:

# Safety factors for step-size control
safety_fac_max = 6.0
safety_fac_min = 0.33
safety_fac = math.pow(0.38, 1.0 / (1.0 + float(min_power)))

...

# Calculate dt for next step
if error < 1e-12:
    error = 1e-12  # Prevent error from being too small

dt_new = dt * safety_fac / math.pow(error, 1.0 / (1.0 + float(min_power)))
if dt_new > safety_fac_max * dt:
    dt *= safety_fac_max
elif dt_new < safety_fac_min * dt:
    dt *= safety_fac_min
else:
    dt = dt_new

if dt_new < TF * 1e-12:
    dt = TF * 1e-12

# Correct overshooting
if current_time < TF and current_time + dt > TF:
    dt = TF - current_time

Initial dt

The final thing we need is to set the initial time step. I found it easiest and most accurate by setting it manually. First, just set it to some arbitrary small value such as 1.0 days. Then, simulate for a short period and observe how the time step corrects itself. Finally, choose a new time step and restart the simulation.

Putting it all together

Now, we can put everything together. First, we will need to slightly modify the print_simulation_info function:

common.py

def print_simulation_info_adaptive_step_size(
    system: System,
    tf: float,
    tolerance: float,
    initial_dt: float,
    output_interval: float,
    sol_size: int,
) -> None:
    print("----------------------------------------------------------")
    print("Simulation Info:")
    print(f"num_particles: {system.num_particles}")
    print(f"G: {system.G}")
    print(f"tf: {tf} days")
    print(f"tolerance: {tolerance}")
    print(f"Initial dt: {initial_dt} days")
    print()
    print(f"Output interval: {output_interval} days")
    print(f"Estimated solution size: {sol_size}")
    print("----------------------------------------------------------")

We also want to store and plot sol_dt to keep track of the evolution of time step.

common.py

def plot_dt(sol_dt: np.ndarray, sol_t: np.ndarray) -> None:
    """
    Plot the time step.

    Parameters
    ----------
    sol_dt : np.ndarray
        Time step array with shape (N_steps,).
    sol_t : np.ndarray
        Solution time array with shape (N_steps,).
    """
    plt.figure()
    plt.semilogy(sol_t, sol_dt)
    plt.xlabel("Time")
    plt.ylabel("dt")
    plt.show()

The final code is given below.

step5.py (Click to expand)

5_steps_to_n_body_simulation/python/step5.py
import math
import timeit

import numpy as np

import common

OPTION = 0

# Default units is AU, days, and M_sun

# Solar system
if OPTION == 0:
    INITIAL_CONDITION = "solar_system"
    TF = 200.0 * 365.24  # 200 years to days
    TOLERANCE = 1e-8
    OUTPUT_INTERVAL = 0.01 * 365.24  # 0.01 year to days
    INITIAL_DT = 1.0

# Pyth-3-body
elif OPTION == 1:
    INITIAL_CONDITION = "pyth-3-body"
    TF = 70.0
    TOLERANCE = 1e-13
    OUTPUT_INTERVAL = 0.001
    INITIAL_DT = 0.01

else:
    raise ValueError("Invalid option. Choose 0 for solar system or 1 for Pyth-3-body.")


def main() -> None:
    # Get initial conditions
    system, labels, colors, legend = common.get_initial_conditions(INITIAL_CONDITION)

    # RKF4(5) coefficients
    # fmt: off
    coeff = np.array((
        [1.0 / 4.0, 0.0, 0.0, 0.0, 0.0],
        [3.0 / 32.0, 9.0 / 32.0, 0.0, 0.0, 0.0],
        [1932.0 / 2197.0, -7200.0 / 2197.0, 7296.0 / 2197.0, 0.0, 0.0],
        [439.0 / 216.0, -8.0, 3680.0 / 513.0, -845.0 / 4104.0, 0.0],
        [-8.0 / 27.0, 2.0, -3544.0 / 2565.0, 1859.0 / 4104.0, -11.0 / 40.0],
    ))
    # fmt: on
    weights = np.array(
        [25.0 / 216.0, 0.0, 1408.0 / 2565.0, 2197.0 / 4104.0, -1.0 / 5.0, 0.0]
    )
    weights_test = np.array(
        [
            16.0 / 135.0,
            0.0,
            6656.0 / 12825.0,
            28561.0 / 56430.0,
            -9.0 / 50.0,
            2.0 / 55.0,
        ]
    )
    min_power = 4
    num_stages = len(weights)

    # Initialize memory and arrays
    a = np.zeros((system.num_particles, 3))
    temp_system = common.System(
        num_particles=system.num_particles,
        x=np.zeros((system.num_particles, 3)),
        v=np.zeros((system.num_particles, 3)),
        m=system.m,
        G=system.G,
    )
    x_1 = np.zeros((system.num_particles, 3))
    v_1 = np.zeros((system.num_particles, 3))
    xk = np.zeros((num_stages, system.num_particles, 3))
    vk = np.zeros((num_stages, system.num_particles, 3))
    error_estimation_delta_x = np.zeros((system.num_particles, 3))
    error_estimation_delta_v = np.zeros((system.num_particles, 3))
    tolerance_scale_x = np.zeros((system.num_particles, 3))
    tolerance_scale_v = np.zeros((system.num_particles, 3))

    # Safety factors for step-size control
    safety_fac_max = 6.0
    safety_fac_min = 0.33
    safety_fac = math.pow(0.38, 1.0 / (1.0 + float(min_power)))

    # Solution array
    sol_size = int(TF // OUTPUT_INTERVAL + 2)  # +2 for initial and final time
    sol_x = np.zeros((sol_size, system.num_particles, 3))
    sol_v = np.zeros((sol_size, system.num_particles, 3))
    sol_t = np.zeros(sol_size)
    sol_dt = np.zeros(sol_size)
    sol_x[0] = system.x
    sol_v[0] = system.v
    sol_t[0] = 0.0
    sol_dt[0] = INITIAL_DT
    output_count = 1

    # Launch simulation
    common.print_simulation_info_adaptive_step_size(
        system, TF, TOLERANCE, INITIAL_DT, OUTPUT_INTERVAL, sol_size
    )
    next_output_time = output_count * OUTPUT_INTERVAL
    start = timeit.default_timer()
    dt = INITIAL_DT
    current_time = 0.0
    while current_time < TF:
        # Initial stage
        common.acceleration(a, system)
        xk[0] = system.v
        vk[0] = a

        # Compute the stages
        for stage in range(1, num_stages):
            # Empty temp_x and temp_v
            temp_system.x.fill(0.0)
            temp_system.v.fill(0.0)

            for i in range(stage):
                temp_system.x[:] += coeff[stage - 1, i] * xk[i]
                temp_system.v[:] += coeff[stage - 1, i] * vk[i]

            temp_system.x[:] = system.x + dt * temp_system.x
            temp_system.v[:] = system.v + dt * temp_system.v

            # Compute the acceleration
            xk[stage] = temp_system.v
            common.acceleration(vk[stage], temp_system)

        # Calculate x_1, v_1 and also delta x, delta v for error estimation
        x_1[:] = system.x
        v_1[:] = system.v
        error_estimation_delta_x.fill(0.0)
        error_estimation_delta_v.fill(0.0)
        for stage in range(num_stages):
            x_1[:] += dt * weights[stage] * xk[stage]
            v_1[:] += dt * weights[stage] * vk[stage]
            error_estimation_delta_x[:] += (
                dt * (weights[stage] - weights_test[stage]) * xk[stage]
            )
            error_estimation_delta_v[:] += (
                dt * (weights[stage] - weights_test[stage]) * vk[stage]
            )

        # Error estimation
        tolerance_scale_x[:] = (
            TOLERANCE + np.maximum(np.abs(system.x), np.abs(x_1)) * TOLERANCE
        )
        tolerance_scale_v[:] = (
            TOLERANCE + np.maximum(np.abs(system.v), np.abs(v_1)) * TOLERANCE
        )

        total = np.sum(
            np.square(error_estimation_delta_x / tolerance_scale_x)
        ) + np.sum(np.square(error_estimation_delta_v / tolerance_scale_v))
        error = math.sqrt(total / (system.num_particles * 3.0 * 2.0))

        # Advance step
        if error <= 1.0 or dt <= TF * 1e-12:
            current_time += dt
            system.x[:] = x_1
            system.v[:] = v_1

            if current_time >= next_output_time:
                sol_x[output_count] = system.x
                sol_v[output_count] = system.v
                sol_t[output_count] = current_time
                sol_dt[output_count] = dt

                output_count += 1
                next_output_time = output_count * OUTPUT_INTERVAL

                print(f"Current time: {current_time:.2f} days", end="\r")

        # Calculate dt for next step
        if error < 1e-12:
            error = 1e-12  # Prevent error from being too small

        dt_new = dt * safety_fac / math.pow(error, 1.0 / (1.0 + float(min_power)))
        if dt_new > safety_fac_max * dt:
            dt *= safety_fac_max
        elif dt_new < safety_fac_min * dt:
            dt *= safety_fac_min
        else:
            dt = dt_new

        if dt_new < TF * 1e-12:
            dt = TF * 1e-12

        # Correct overshooting
        if current_time < TF and current_time + dt > TF:
            dt = TF - current_time

    sol_x = sol_x[:output_count]
    sol_v = sol_v[:output_count]
    sol_t = sol_t[:output_count]
    sol_dt = sol_dt[:output_count]

    end = timeit.default_timer()

    print()
    print(f"Done! Runtime: {end - start:.3g} seconds, Solution size: {output_count}")
    common.plot_trajectory(
        sol_x=sol_x,
        labels=labels,
        colors=colors,
        legend=legend,
    )

    # Compute and plot relative energy error
    rel_energy_error = common.compute_rel_energy_error(sol_x, sol_v, system)
    print(f"Relative energy error: {rel_energy_error[-1]:.3g}")
    common.plot_rel_energy_error(rel_energy_error, sol_t / 365.24)
    common.plot_dt(sol_dt, sol_t)


if __name__ == "__main__":
    main()

Simulation results

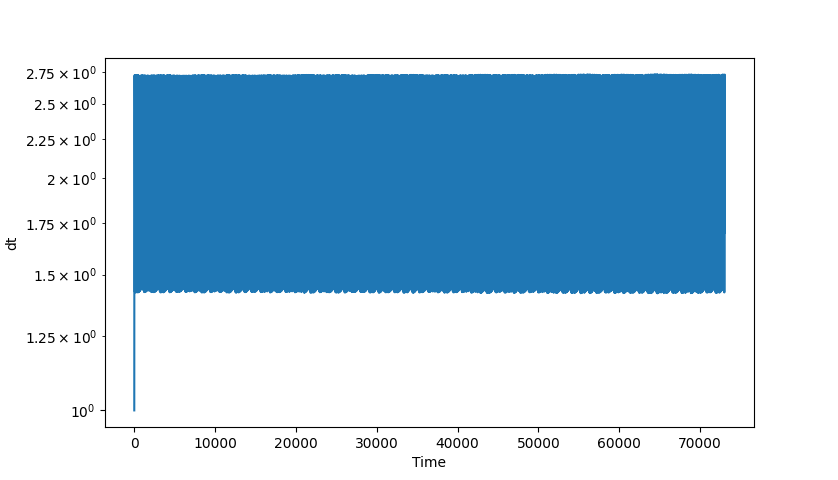

Let us try to run the code again for the solar system. We use a tolerance = \(10^{-8}\) and initial time step = 1.0 days. The plots are shown below, with \(\Delta t\) fluctuated quickly between \(\sim 1.4 - 2.75\) days. This allows a more flexible time stepping to reduce the computation cost.

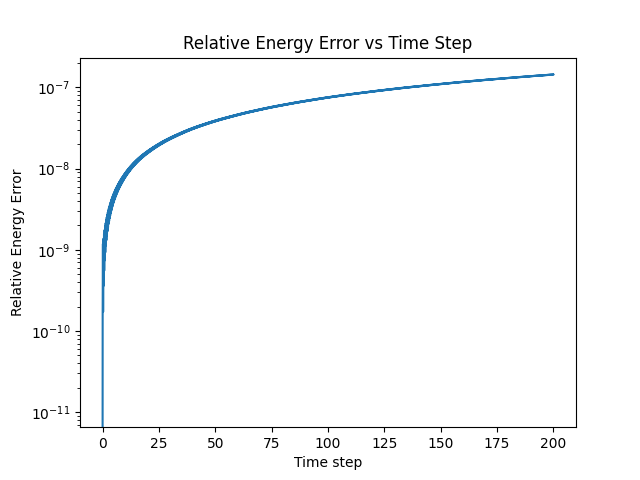

Relative energy error

Pythagorean Three-Body Problem

As the Solar system is mostly stable, we may not be able to see the benefits of adaptive time-stepping. Here, we try the Pythagorean three-body problem, which is an extremely chaotic system with close encounters. Below is an illustration of the initial condition. We have three particles at rest at the vertices of a right-angled triangle with length ratio 3:4:5. The mass of the particles are \(3.0 / G, 4.0 / G\) and \(5.0 / G\) respectively.

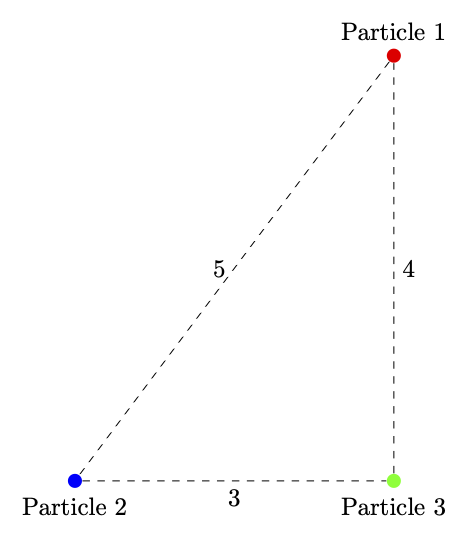

Pythagorean three-body problem

The initial condition is available in the get_initial_conditions function we implemented before. Also, we set the following simulation parameters:

TF = 70.0  # 70 days
TOLERANCE = 1e-13
OUTPUT_INTERVAL = 0.001  # 0.001 day
INITIAL_DT = 0.01  # Initial time step in days

The simulation result is shown below:

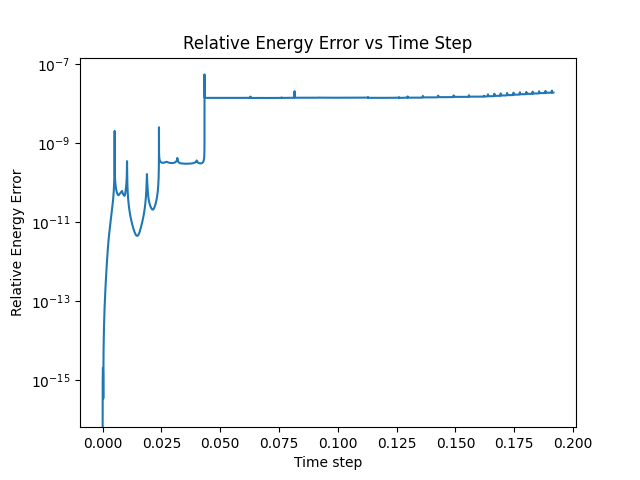

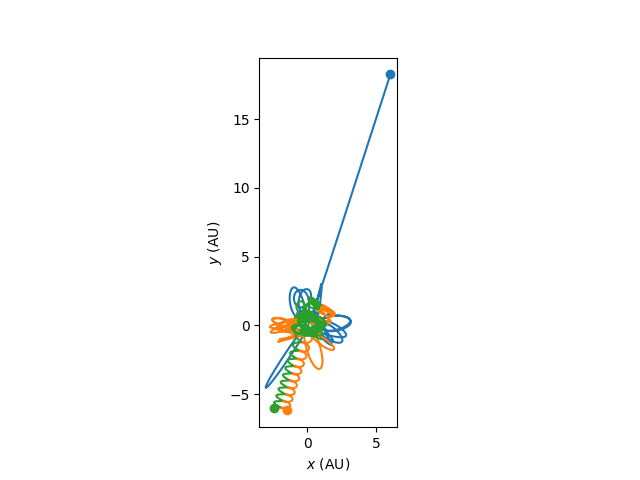

Trajectory Relative energy error

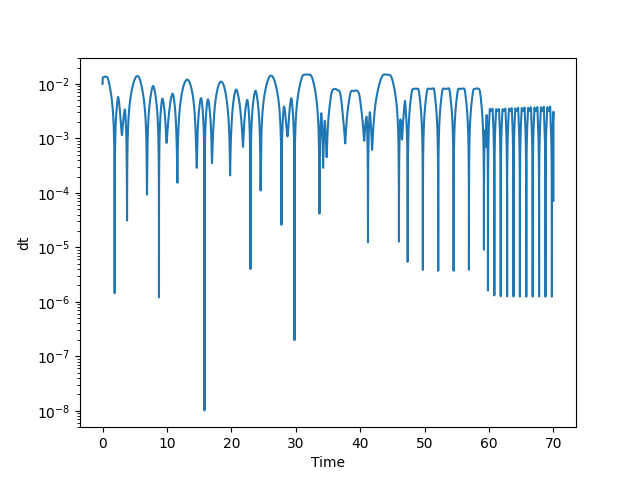

As shown from the plots, \(\Delta t\) fluctuated greatly between \(10^{-8} - 10^{-2}\) days! This is because of the close encounters between the particles. A video of the evolution in real time is available on youtube:

Can we simulate this with RK4? Yes, but not with the time step we used before. Because the smallest time step for RKF4(5) is \(10^{-8}\) days, we will also need to set the time step for RK4 to \(10^{-8}\) days for the whole simulation, which is very inefficient! I have tested it using our grav_sim package written in C. The largest \(\Delta t\) we can use is \(\sim 2 \times 10^{-8}\) days, and the simulation took about 8 minutes, while the RKF45 finished within seconds! In Python it would probably takes hours to run the RK4 simulation.

Summary

In this step, we have implemented the RKF4(5) method with adaptive time-stepping. It is very efficient and allow us to save computational time, especially for chaotic systems or systems with close encounters.

Full scripts

The full scripts are available at 5_steps_to_n_body_simulation/python/, or https://github.com/alvinng4/grav_sim/blob/main/5_steps_to_n_body_simulation/python/
