Barnes-Hut algorithm

The classic Barnes-Hut algorithm¹ provides a way to approximate forces in \(\mathcal{O}(N \log N)\) without losing accuracy at close range. Because gravity decays at a quadratic rate, the accuracy of long range interactions are less important. Therefore, it is reasonable to approximate a far cluster of particles as a single particle with mass \(m = m_{\textnormal{cluster}} \) and coordinate \(x = x_{\textnormal{com, cluster} } \). One simple choice of criterion is the opening angle \(\theta = l / d\), where \(l\) is the length of the cubical cell enclosing the cluster and \(d\) is the distance between the target particle and the center of mass of the cluster (see figure 1). This is purely geometric and does not depends on the mass or number of particles in the cluster.

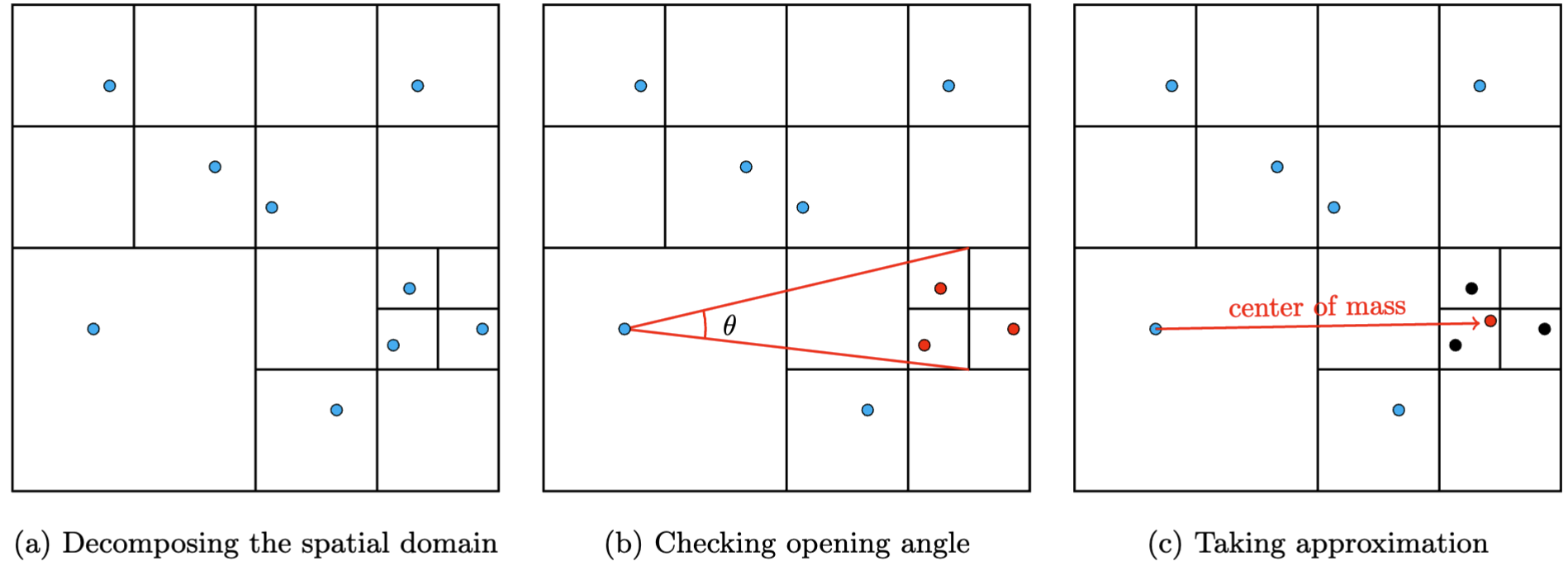

Figure 1: Illustration of Barnes-Hut algorithm.

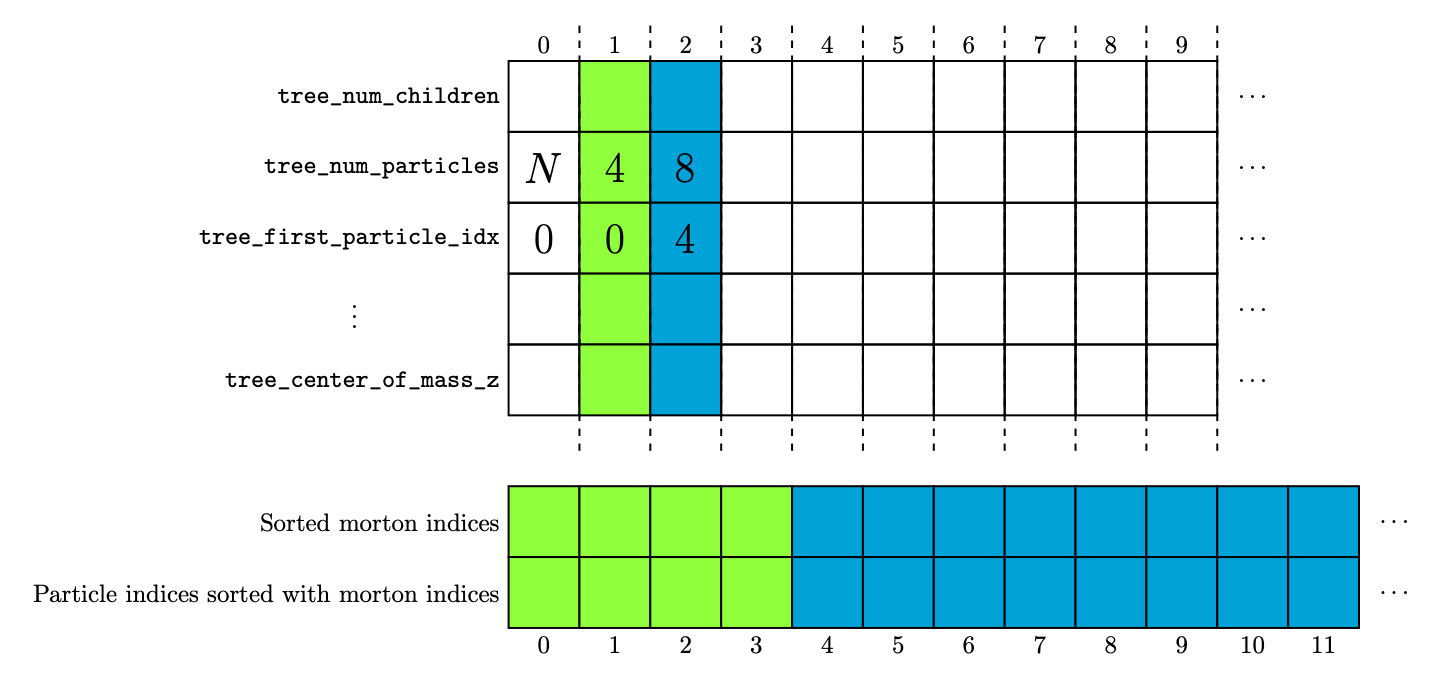

Linear octree construction

Source code (Click to expand)

/**
 * \file linear_octree.c
 * \brief Implementation of linear octree for Barnes-Hut algorithm
 *
 * \author Ching-Yin Ng
 */

#include <math.h>
#include <stdio.h>
#include <stdlib.h>
#include <string.h>

#ifdef USE_OPENMP
#include <omp.h>
#endif

#include "acceleration.h"
#include "common.h"
#include "error.h"
#include "linear_octree.h"

// // For debug only
// static void print_octree_nodes(
//     const LinearOctree *restrict octree,
//     const double *restrict x,
//     const double *restrict m,
//     const int node_idx,
//     const int indent
// )
// {
//     // Print indent spaces
//     for (int i = 0; i < indent; ++i)
//     printf("  ");

//     // Print summary info about the node
//     printf("Node %d:\n", node_idx);

//     for (int i = 0; i < indent; ++i) printf("  ");
//     printf("  Num Particles: %d, Num children: %d\n",
//         octree->tree_num_particles[node_idx],
//         octree->tree_num_internal_children[node_idx]
//     );

//     if (octree->tree_num_internal_children[node_idx] > 0)
//     {
//         for (int i = 0; i < indent; ++i) printf("  ");
//         printf("  Center of Mass: (%.16g, %.16g, %.16g), Total Mass: %.16g\n",
//             octree->tree_center_of_mass_x[node_idx],
//             octree->tree_center_of_mass_y[node_idx],
//             octree->tree_center_of_mass_z[node_idx],
//             octree->tree_mass[node_idx]
//         );
//     }
//     else
//     {
//         for (int i = 0; i < octree->tree_num_particles[node_idx]; i++)
//         {
//             int particle_idx =
//             octree->sorted_indices[octree->tree_first_particle_sorted_idx[node_idx] +
//             i]; for (int j = 0; j < indent; ++j) printf("  "); printf("  Particle %d:
//             (%.4g, %.4g, %.4g), m = %.4g\n",
//                 particle_idx,
//                 x[particle_idx * 3 + 0],
//                 x[particle_idx * 3 + 1],
//                 x[particle_idx * 3 + 2],
//                 m[particle_idx]
//             );
//         }
//     }

//     // Recurse on internal children (if any)
//     int num_children = octree->tree_num_internal_children[node_idx];
//     if (num_children > 0)
//     {
//         int first_child = octree->tree_first_internal_children_idx[node_idx];
//         for (int i = 0; i < num_children; ++i)
//         {
//             int child_idx = first_child + i;
//             print_octree_nodes(
//                 octree,
//                 x,
//                 m,
//                 child_idx,
//                 indent + 1
//             );
//         }
//     }
// }

LinearOctree get_new_linear_octree(void)
{
    LinearOctree linear_octree;
    linear_octree.particle_morton_indices_deepest_level = NULL;
    linear_octree.sorted_indices = NULL;
    linear_octree.tree_num_particles = NULL;
    linear_octree.tree_num_internal_children = NULL;
    linear_octree.tree_first_internal_children_idx = NULL;
    linear_octree.tree_mass = NULL;
    linear_octree.tree_center_of_mass_x = NULL;
    linear_octree.tree_center_of_mass_y = NULL;
    linear_octree.tree_center_of_mass_z = NULL;
    return linear_octree;
}

/**
 * \brief Calculate the bounding box of the system
 *
 * \param[out] center 3D vector of the center of the bounding box
 * \param[out] width Width of the bounding box
 * \param[in] num_particles Number of particles
 * \param[in] x Array of position vectors
 */
static void calculate_bounding_box(
    double *restrict center,
    double *restrict width,
    const int num_particles,
    const double *restrict x
)
{
    /* Find the width of the bounding box */
    double min_x = x[0];
    double max_x = x[0];
    double min_y = x[1];
    double max_y = x[1];
    double min_z = x[2];
    double max_z = x[2];

    for (int i = 1; i < num_particles; i++)
    {
        min_x = fmin(min_x, x[i * 3 + 0]);
        max_x = fmax(max_x, x[i * 3 + 0]);
        min_y = fmin(min_y, x[i * 3 + 1]);
        max_y = fmax(max_y, x[i * 3 + 1]);
        min_z = fmin(min_z, x[i * 3 + 2]);
        max_z = fmax(max_z, x[i * 3 + 2]);
    }

    center[0] = (max_x + min_x) / 2.0;
    center[1] = (max_y + min_y) / 2.0;
    center[2] = (max_z + min_z) / 2.0;

    const double width_x = max_x - min_x;
    const double width_y = max_y - min_y;
    const double width_z = max_z - min_z;
    *width = fmax(fmax(width_x, width_y), width_z);
}

/**

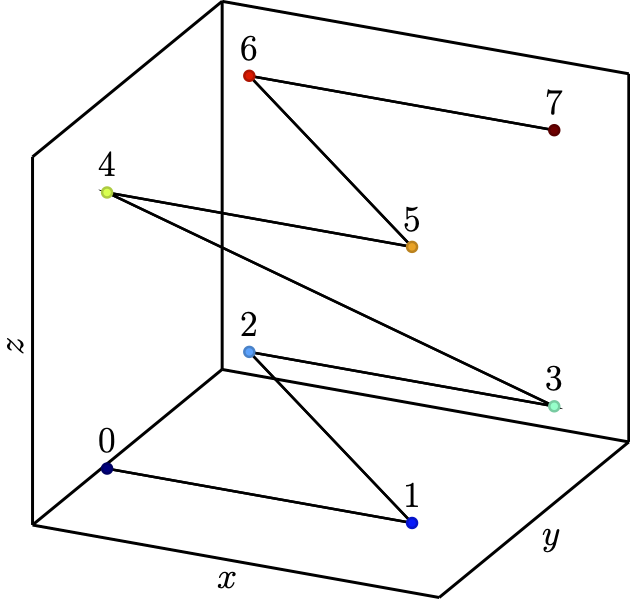

 * \brief Compute the 3D Morton indices at level 21 using magic number
 *
 * \param[out] morton_indices Array of Morton indices
 * \param[in] object_count Number of particles
 * \param[in] x Array of position vectors
 * \param[in] center 3D vector of the center of the bounding box
 * \param[in] width Width of the bounding box
 *
 * \ref https://stackoverflow.com/a/18528775, Stack Overflow
 */
static void compute_3d_particle_morton_indices_deepest_level(
    int64 *restrict morton_indices,
    const int object_count,
    const double *restrict x,
    const double *restrict center,
    const double width
)
{
    for (int i = 0; i < object_count; i++)
    {
        /* Normalize the position */
        const double x_i = (x[i * 3 + 0] - center[0]) / width + 0.5;
        const double y_i = (x[i * 3 + 1] - center[1]) / width + 0.5;
        const double z_i = (x[i * 3 + 2] - center[2]) / width + 0.5;

        /* Compute the morton indices */
        int64 n_x = x_i * (1 << 21);
        int64 n_y = y_i * (1 << 21);
        int64 n_z = z_i * (1 << 21);

        n_x &= 0x1fffff;
        n_x = (n_x | n_x << 32) & 0x1f00000000ffff;
        n_x = (n_x | n_x << 16) & 0x1f0000ff0000ff;
        n_x = (n_x | n_x << 8) & 0x100f00f00f00f00f;
        n_x = (n_x | n_x << 4) & 0x10c30c30c30c30c3;
        n_x = (n_x | n_x << 2) & 0x1249249249249249;

        n_y &= 0x1fffff;
        n_y = (n_y | n_y << 32) & 0x1f00000000ffff;
        n_y = (n_y | n_y << 16) & 0x1f0000ff0000ff;
        n_y = (n_y | n_y << 8) & 0x100f00f00f00f00f;
        n_y = (n_y | n_y << 4) & 0x10c30c30c30c30c3;
        n_y = (n_y | n_y << 2) & 0x1249249249249249;

        n_z &= 0x1fffff;
        n_z = (n_z | n_z << 32) & 0x1f00000000ffff;
        n_z = (n_z | n_z << 16) & 0x1f0000ff0000ff;
        n_z = (n_z | n_z << 8) & 0x100f00f00f00f00f;
        n_z = (n_z | n_z << 4) & 0x10c30c30c30c30c3;
        n_z = (n_z | n_z << 2) & 0x1249249249249249;

        morton_indices[i] = n_x | (n_y << 1) | (n_z << 2);
    }
}

/**
 * \brief Perform radix sort on the particles based on their Morton indices
 *
 * \param morton_indices Array of Morton indices
 * \param indices Array of indices
 * \param object_count Number of particles
 * \param level Level of the Morton indices
 *
 * \return ErrorStatus
 *
 * \exception GRAV_MEMORY_ERROR if memory allocation for temporary arrays failed
 */
static ErrorStatus radix_sort_particles_morton_index(
    int64 *restrict morton_indices,
    int *restrict indices,
    const int object_count,
    const int level
)
{
    /* Calculate constnats */
    const int RADIX_BITS = 9;
    const int RADIX_SIZE = 1 << RADIX_BITS;
    const int RADIX_MASK = RADIX_SIZE - 1;

    const int num_significant_bits = 3 * level;
    const int num_passes = (num_significant_bits + RADIX_BITS - 1) / RADIX_BITS;

    /* Allocate memory */
    int64 *restrict temp_morton_indices = malloc(object_count * sizeof(int64));
    int *restrict temp_indices = malloc(object_count * sizeof(int));
    int *restrict count = malloc(RADIX_SIZE * sizeof(int));
    if (!temp_morton_indices || !temp_indices || !count)
    {
        free(count);
        free(temp_morton_indices);
        free(temp_indices);

        return WRAP_RAISE_ERROR(
            GRAV_MEMORY_ERROR, "Failed to allocate memory for temporary arrays"
        );
    }

    /* Perform LSB radix sort */

    // Flag to indicate whether the sorted array is in temp arrays
    // This can reduce the number of memcpy to O(1) instead of O(num_passes)
    bool is_temp = false;

    for (int i = 0; i < num_passes; i++)
    {
        // Empty count array
        for (int j = 0; j < RADIX_SIZE; j++)
        {
            count[j] = 0;
        }

        // Calculate shift for this pass (start from least significant bits)
        const int shift = i * RADIX_BITS;

        // Count occurrences of each radix value
        if (is_temp)
        {
            for (int j = 0; j < object_count; j++)
            {
                count[(temp_morton_indices[j] >> shift) & RADIX_MASK]++;
            }
        }
        else
        {
            for (int j = 0; j < object_count; j++)
            {
                count[(morton_indices[j] >> shift) & RADIX_MASK]++;
            }
        }

        // Get cumulative count
        int total = 0;
        for (int j = 0; j < RADIX_SIZE; j++)
        {
            int old_count = count[j];
            count[j] = total;
            total += old_count;
        }

        // Sort elements into temporary arrays
        if (is_temp)
        {
            for (int j = 0; j < object_count; j++)
            {
                const int dest =
                    count[(temp_morton_indices[j] >> shift) & RADIX_MASK]++;

                morton_indices[dest] = temp_morton_indices[j];
                indices[dest] = temp_indices[j];
            }
        }
        else
        {
            for (int j = 0; j < object_count; j++)
            {
                const int dest = count[(morton_indices[j] >> shift) & RADIX_MASK]++;

                temp_morton_indices[dest] = morton_indices[j];
                temp_indices[dest] = indices[j];
            }
        }

        is_temp = !is_temp;
    }

    // Copy the sorted array to the original array
    if (is_temp)
    {
        memcpy(morton_indices, temp_morton_indices, object_count * sizeof(int64));
        memcpy(indices, temp_indices, object_count * sizeof(int));
    }

    free(count);
    free(temp_morton_indices);
    free(temp_indices);

    return make_success_error_status();
}

/**
 * \brief Perform binary search to find the number of particles in each octant
 *
 * \param[out] num_particles_per_octant Array to store the number of particles in each
 * octant
 * \param[in] particle_morton_indices_deepest_level Array of Morton indices at the
 * deepest level
 * \param[in] node_morton_index_level Morton index of the node
 * \param[in] start_idx Start index of the particles in the node
 * \param[in] end_idx End index of the particles in the node
 * \param[in] leaf_level Level of the leaf nodes
 *
 * \return ErrorStatus
 *
 * \exception GRAV_VALUE_ERROR if the Morton index is out of range
 */
static ErrorStatus binary_search_num_particles_per_octant(
    int *restrict num_particles_per_octant,
    const int64 *restrict particle_morton_indices_deepest_level,
    const int64 node_morton_index_level,
    const int start_idx,
    const int end_idx,
    const int leaf_level
)
{
    const int64 prefix = node_morton_index_level * 8;
    const int level_shift = 3 * (MORTON_MAX_LEVEL - leaf_level);

    int cumulative_count = 0;

    for (int i = 0; i < 8; i++)
    {
        // Binary search for the index of last i
        int left = start_idx + cumulative_count;
        int right = end_idx;
        while (left <= right)
        {
            const int mid = left + (right - left) / 2;
            const int mid_octant =
                ((particle_morton_indices_deepest_level[mid] >> level_shift) - prefix);

            if (mid_octant > 7 || mid_octant < 0)
            {
                return raise_error_fmt(
                    __FILE__,
                    __LINE__,
                    __func__,
                    GRAV_VALUE_ERROR,
                    "Morton index %d is out of range [0, 7]",
                    mid_octant
                );
            }

            if (mid_octant == i &&
                (mid == end_idx ||
                 (((particle_morton_indices_deepest_level[mid + 1] >> level_shift) -
                   prefix)) > i))
            {
                num_particles_per_octant[i] = mid - (start_idx + cumulative_count) + 1;
                cumulative_count += num_particles_per_octant[i];
                break;
            }
            else if (mid_octant <= i)
            {
                left = mid + 1;
            }
            else
            {
                right = mid - 1;
            }
        }
    }

    return make_success_error_status();
}

/**
 * \brief Set up a new internal node
 *
 * \param[out] octree Pointer to the linear octree
 * \param[out] allocated_internal_nodes_ptr Pointer to the number of allocated internal
 * nodes
 * \param[in] level Node level
 * \param[in] node Node index
 * \param[in] node_morton_index_level Morton index of the node at the current level
 *
 * \return ErrorStatus
 */
static ErrorStatus setup_node(
    LinearOctree *restrict octree,
    int *restrict allocated_internal_nodes_ptr,
    const int level,
    const int node,
    const int64 node_morton_index_level
)
{
    ErrorStatus error_status;

    /* Declare variables */
    int *restrict num_internal_nodes_ptr = &octree->num_internal_nodes;
    int *restrict tree_num_particles = octree->tree_num_particles;
    int *restrict tree_num_internal_children = octree->tree_num_internal_children;
    int *restrict tree_first_particle_sorted_idx =
        octree->tree_first_particle_sorted_idx;
    int *restrict tree_first_internal_children_idx =
        octree->tree_first_internal_children_idx;

    double *restrict tree_mass = octree->tree_mass;
    double *restrict tree_center_of_mass_x = octree->tree_center_of_mass_x;
    double *restrict tree_center_of_mass_y = octree->tree_center_of_mass_y;
    double *restrict tree_center_of_mass_z = octree->tree_center_of_mass_z;

    int num_particles_per_octant[8] = {0};

    /* Find the number of particles in each octant */
    const int start_idx = tree_first_particle_sorted_idx[node];
    const int end_idx = start_idx + tree_num_particles[node] - 1;
    const int child_level = level + 1;
    error_status = WRAP_TRACEBACK(binary_search_num_particles_per_octant(
        num_particles_per_octant,
        octree->particle_morton_indices_deepest_level,
        node_morton_index_level,
        start_idx,
        end_idx,
        child_level
    ));
    if (error_status.return_code != GRAV_SUCCESS)
    {
        return error_status;
    }

    /* Set up child nodes */
    bool first_child_found = false;
    int cumulative_count = 0;
    for (int i = 0; i < 8; i++)
    {
        if (num_particles_per_octant[i] <= 0)
        {
            continue;
        }

        const int child = *num_internal_nodes_ptr;

        // Reallocate memory if necessary
        if (child >= *allocated_internal_nodes_ptr)
        {
            *allocated_internal_nodes_ptr *= 2;
            int *tmp_tree_num_particles = realloc(
                tree_num_particles, *allocated_internal_nodes_ptr * sizeof(int)
            );
            if (!tmp_tree_num_particles)
            {
                return WRAP_RAISE_ERROR(
                    GRAV_MEMORY_ERROR,
                    "Failed to reallocate memory for tree_num_particles"
                );
            }
            tree_num_particles = tmp_tree_num_particles;
            octree->tree_num_particles = tree_num_particles;

            int *tmp_tree_num_internal_children = realloc(
                tree_num_internal_children, *allocated_internal_nodes_ptr * sizeof(int)
            );
            if (!tmp_tree_num_internal_children)
            {
                return WRAP_RAISE_ERROR(
                    GRAV_MEMORY_ERROR,
                    "Failed to reallocate memory for tree_num_internal_children"
                );
            }
            tree_num_internal_children = tmp_tree_num_internal_children;
            octree->tree_num_internal_children = tree_num_internal_children;

            int *tmp_tree_first_particle_sorted_idx = realloc(
                tree_first_particle_sorted_idx,
                *allocated_internal_nodes_ptr * sizeof(int)
            );
            if (!tmp_tree_first_particle_sorted_idx)
            {
                return WRAP_RAISE_ERROR(
                    GRAV_MEMORY_ERROR,
                    "Failed to reallocate memory for tree_first_particle_sorted_idx"
                );
            }
            tree_first_particle_sorted_idx = tmp_tree_first_particle_sorted_idx;
            octree->tree_first_particle_sorted_idx = tree_first_particle_sorted_idx;

            int *tmp_tree_first_internal_children_idx = realloc(
                tree_first_internal_children_idx,
                *allocated_internal_nodes_ptr * sizeof(int)
            );
            if (!tmp_tree_first_internal_children_idx)
            {
                return WRAP_RAISE_ERROR(
                    GRAV_MEMORY_ERROR,
                    "Failed to reallocate memory for tree_first_internal_children_idx"
                );
            }
            tree_first_internal_children_idx = tmp_tree_first_internal_children_idx;
            octree->tree_first_internal_children_idx = tree_first_internal_children_idx;

            double *tmp_tree_mass = realloc(
                octree->tree_mass, *allocated_internal_nodes_ptr * sizeof(double)
            );
            if (!tmp_tree_mass)
            {
                return WRAP_RAISE_ERROR(
                    GRAV_MEMORY_ERROR, "Failed to reallocate memory for tree_mass"
                );
            }
            tree_mass = tmp_tree_mass;
            octree->tree_mass = tmp_tree_mass;

            double *tmp_tree_center_of_mass_x = realloc(
                octree->tree_center_of_mass_x,
                *allocated_internal_nodes_ptr * sizeof(double)
            );
            if (!tmp_tree_center_of_mass_x)
            {
                return WRAP_RAISE_ERROR(
                    GRAV_MEMORY_ERROR,
                    "Failed to reallocate memory for tree_center_of_mass_x"
                );
            }
            octree->tree_center_of_mass_x = tmp_tree_center_of_mass_x;
            tree_center_of_mass_x = tmp_tree_center_of_mass_x;

            double *tmp_tree_center_of_mass_y = realloc(
                octree->tree_center_of_mass_y,
                *allocated_internal_nodes_ptr * sizeof(double)
            );
            if (!tmp_tree_center_of_mass_y)
            {
                return WRAP_RAISE_ERROR(
                    GRAV_MEMORY_ERROR,
                    "Failed to reallocate memory for tree_center_of_mass_y"
                );
            }
            octree->tree_center_of_mass_y = tmp_tree_center_of_mass_y;
            tree_center_of_mass_y = tmp_tree_center_of_mass_y;

            double *tmp_tree_center_of_mass_z = realloc(
                octree->tree_center_of_mass_z,
                *allocated_internal_nodes_ptr * sizeof(double)
            );
            if (!tmp_tree_center_of_mass_z)
            {
                return WRAP_RAISE_ERROR(
                    GRAV_MEMORY_ERROR,
                    "Failed to reallocate memory for tree_center_of_mass_z"
                );
            }
            octree->tree_center_of_mass_z = tmp_tree_center_of_mass_z;
            tree_center_of_mass_z = tmp_tree_center_of_mass_z;
        }

        if (!first_child_found)
        {
            first_child_found = true;
            tree_first_internal_children_idx[node] = child;
            tree_num_internal_children[node] = 0;
        }

        // Create a new internal node
        (*num_internal_nodes_ptr)++;
        (tree_num_internal_children[node])++;

        tree_num_internal_children[child] = 0;
        tree_num_particles[child] = num_particles_per_octant[i];
        tree_first_particle_sorted_idx[child] = start_idx + cumulative_count;

        tree_mass[child] = 0.0;
        tree_center_of_mass_x[child] = 0.0;
        tree_center_of_mass_y[child] = 0.0;
        tree_center_of_mass_z[child] = 0.0;

        cumulative_count += num_particles_per_octant[i];
    }

    return make_success_error_status();
}

/**
 * \brief Helper function to construct the octree
 *
 * \param[out] octree Pointer to the linear octree
 * \param[in] allocated_internal_nodes Number of allocated internal nodes
 * \param[in] max_num_particles_per_leaf Maximum number of particles per leaf
 * \param[in] num_particles Number of particles
 * \param[in] x Array of position vectors
 * \param[in] m Array of masses
 *
 * \return ErrorStatus
 */
static ErrorStatus helper_construct_octree(
    LinearOctree *restrict octree,
    int allocated_internal_nodes,
    const int max_num_particles_per_leaf,
    const int num_particles,
    const double *restrict x,
    const double *restrict m
)
{
    typedef struct Stack
    {
        int node;
        int processed_children;
        double total_mass;
        double mass_times_distance[3];
        struct Stack *parent;
    } Stack;

    ErrorStatus error_status;

    /* Create a stack */
    Stack stack[MORTON_MAX_LEVEL + 1];
    Stack *restrict current_stack = &(stack[0]);

    current_stack->node = 0;
    current_stack->processed_children = -1;
    current_stack->total_mass = 0.0;
    current_stack->mass_times_distance[0] = 0.0;
    current_stack->mass_times_distance[1] = 0.0;
    current_stack->mass_times_distance[2] = 0.0;
    current_stack->parent = NULL;

    /* Declare variables */
    int *restrict num_internal_nodes_ptr = &(octree->num_internal_nodes);
    const int64 *restrict particle_morton_indices_deepest_level =
        octree->particle_morton_indices_deepest_level;
    const int *restrict sorted_indices = octree->sorted_indices;

    /* Set up the root node */
    int level = 0;
    *num_internal_nodes_ptr = 1;

    octree->tree_num_particles[0] = num_particles;
    octree->tree_num_internal_children[0] = 0;
    octree->tree_first_particle_sorted_idx[0] = 0;
    octree->tree_mass[0] = 0.0;
    octree->tree_center_of_mass_x[0] = 0.0;
    octree->tree_center_of_mass_y[0] = 0.0;
    octree->tree_center_of_mass_z[0] = 0.0;

    error_status = WRAP_TRACEBACK(
        setup_node(octree, &allocated_internal_nodes, level, current_stack->node, 0)
    );
    if (error_status.return_code != GRAV_SUCCESS)
    {
        return error_status;
    }
    level++;

    while (true)
    {
        const int current_node = current_stack->node;
        for (int i = current_stack->processed_children + 1;
             i < octree->tree_num_internal_children[current_node];
             i++)
        {
            const int child =
                octree->tree_first_internal_children_idx[current_node] + i;
            const int start_idx = octree->tree_first_particle_sorted_idx[child];
            const int num_particles = octree->tree_num_particles[child];

            /* Leaf node */
            if (num_particles <= max_num_particles_per_leaf ||
                level >= MORTON_MAX_LEVEL)
            {
                octree->tree_num_internal_children[child] = 0;

                // Update the stack
                for (int j = 0; j < num_particles; j++)
                {
                    const int particle_idx = sorted_indices[start_idx + j];
                    current_stack->total_mass += m[particle_idx];
                    current_stack->mass_times_distance[0] +=
                        m[particle_idx] * x[particle_idx * 3 + 0];
                    current_stack->mass_times_distance[1] +=
                        m[particle_idx] * x[particle_idx * 3 + 1];
                    current_stack->mass_times_distance[2] +=
                        m[particle_idx] * x[particle_idx * 3 + 2];
                }
                current_stack->processed_children = i;

                continue;
            }

            /* Internal node */
            else
            {
                const int64 child_morton_index_level =
                    (particle_morton_indices_deepest_level[start_idx] >>
                     (3 * (MORTON_MAX_LEVEL - level)));
                error_status = WRAP_TRACEBACK(setup_node(
                    octree,
                    &allocated_internal_nodes,
                    level,
                    child,
                    child_morton_index_level
                ));
                if (error_status.return_code != GRAV_SUCCESS)
                {
                    return error_status;
                }

                Stack *restrict new_item = &(stack[level + 1]);
                new_item->node = child;
                new_item->processed_children = -1;
                new_item->total_mass = 0.0;
                new_item->mass_times_distance[0] = 0.0;
                new_item->mass_times_distance[1] = 0.0;
                new_item->mass_times_distance[2] = 0.0;
                new_item->parent = current_stack;

                current_stack = new_item;
                level++;

                break;
            }
        }

        /* Processed all children */
        if ((current_stack->processed_children + 1) >=
            octree->tree_num_internal_children[current_stack->node])
        {
            /* Update center of mass */
            octree->tree_mass[current_node] = current_stack->total_mass;
            octree->tree_center_of_mass_x[current_node] =
                current_stack->mass_times_distance[0] / current_stack->total_mass;
            octree->tree_center_of_mass_y[current_node] =
                current_stack->mass_times_distance[1] / current_stack->total_mass;
            octree->tree_center_of_mass_z[current_node] =
                current_stack->mass_times_distance[2] / current_stack->total_mass;

            Stack *parent = current_stack->parent;
            if (!parent)
            {
                break;
            }

            parent->total_mass += current_stack->total_mass;
            parent->mass_times_distance[0] += current_stack->mass_times_distance[0];
            parent->mass_times_distance[1] += current_stack->mass_times_distance[1];
            parent->mass_times_distance[2] += current_stack->mass_times_distance[2];

            current_stack = parent;
            (current_stack->processed_children)++;
            level--;
        }
    }

    /* Release unused memory */
    if (allocated_internal_nodes > (*num_internal_nodes_ptr))
    {
        int *restrict tmp_tree_num_particles =
            realloc(octree->tree_num_particles, *num_internal_nodes_ptr * sizeof(int));
        if (!tmp_tree_num_particles)
        {
            return WRAP_RAISE_ERROR(
                GRAV_MEMORY_ERROR, "Failed to reallocate memory for tree_num_particles"
            );
        }
        octree->tree_num_particles = tmp_tree_num_particles;

        int *restrict tmp_tree_num_internal_children = realloc(
            octree->tree_num_internal_children, *num_internal_nodes_ptr * sizeof(int)
        );
        if (!tmp_tree_num_internal_children)
        {
            return WRAP_RAISE_ERROR(
                GRAV_MEMORY_ERROR,
                "Failed to reallocate memory for tree_num_internal_children"
            );
        }
        octree->tree_num_internal_children = tmp_tree_num_internal_children;

        int *restrict tmp_tree_first_particle_sorted_idx = realloc(
            octree->tree_first_particle_sorted_idx,
            *num_internal_nodes_ptr * sizeof(int)
        );
        if (!tmp_tree_first_particle_sorted_idx)
        {
            return WRAP_RAISE_ERROR(
                GRAV_MEMORY_ERROR,
                "Failed to reallocate memory for tree_first_particle_sorted_idx"
            );
        }
        octree->tree_first_particle_sorted_idx = tmp_tree_first_particle_sorted_idx;

        int *restrict tmp_tree_first_internal_children_idx = realloc(
            octree->tree_first_internal_children_idx,
            *num_internal_nodes_ptr * sizeof(int)
        );
        if (!tmp_tree_first_internal_children_idx)
        {
            return WRAP_RAISE_ERROR(
                GRAV_MEMORY_ERROR,
                "Failed to reallocate memory for tree_first_internal_children_idx"
            );
        }
        octree->tree_first_internal_children_idx = tmp_tree_first_internal_children_idx;

        double *restrict tmp_tree_mass =
            realloc(octree->tree_mass, *num_internal_nodes_ptr * sizeof(double));
        if (!tmp_tree_mass)
        {
            return WRAP_RAISE_ERROR(
                GRAV_MEMORY_ERROR, "Failed to reallocate memory for tree_mass"
            );
        }
        octree->tree_mass = tmp_tree_mass;

        double *restrict tmp_tree_center_of_mass_x = realloc(
            octree->tree_center_of_mass_x, *num_internal_nodes_ptr * sizeof(double)
        );
        if (!tmp_tree_center_of_mass_x)
        {
            return WRAP_RAISE_ERROR(
                GRAV_MEMORY_ERROR,
                "Failed to reallocate memory for tree_center_of_mass_x"
            );
        }
        octree->tree_center_of_mass_x = tmp_tree_center_of_mass_x;

        double *restrict tmp_tree_center_of_mass_y = realloc(
            octree->tree_center_of_mass_y, *num_internal_nodes_ptr * sizeof(double)
        );
        if (!tmp_tree_center_of_mass_y)
        {
            return WRAP_RAISE_ERROR(
                GRAV_MEMORY_ERROR,
                "Failed to reallocate memory for tree_center_of_mass_y"
            );
        }
        octree->tree_center_of_mass_y = tmp_tree_center_of_mass_y;

        double *restrict tmp_tree_center_of_mass_z = realloc(
            octree->tree_center_of_mass_z, *num_internal_nodes_ptr * sizeof(double)
        );
        if (!tmp_tree_center_of_mass_z)
        {
            return WRAP_RAISE_ERROR(
                GRAV_MEMORY_ERROR,
                "Failed to reallocate memory for tree_center_of_mass_z"
            );
        }
        octree->tree_center_of_mass_z = tmp_tree_center_of_mass_z;
    }

    return make_success_error_status();
}

ErrorStatus construct_octree(
    LinearOctree *restrict octree,
    const System *restrict system,
    const AccelerationParam *restrict acceleration_param,
    const double *restrict box_center,
    const double box_width
)
{
    ErrorStatus error_status;

    /* Check for pointers */
    if (!octree)
    {
        return WRAP_RAISE_ERROR(GRAV_POINTER_ERROR, "Octree pointer is NULL");
    }
    if (!system)
    {
        return WRAP_RAISE_ERROR(GRAV_POINTER_ERROR, "System pointer is NULL");
    }
    if (!acceleration_param)
    {
        return WRAP_RAISE_ERROR(
            GRAV_POINTER_ERROR, "Acceleration parameter pointer is NULL"
        );
    }

    const int num_particles = system->num_particles;
    const double *restrict x = system->x;
    const double *restrict m = system->m;
    const int max_num_particles_per_leaf =
        acceleration_param->max_num_particles_per_leaf;

    /* Find the width and center of the bounding box */
    double center[3];
    if (!box_center || box_width <= 0.0)
    {
        calculate_bounding_box(center, &(octree->box_width), num_particles, x);
        box_center = center;
    }
    else
    {
        octree->box_width = box_width;
        center[0] = box_center[0];
        center[1] = box_center[1];
        center[2] = box_center[2];
    }

    /* Allocate memory */
    // Indices
    octree->particle_morton_indices_deepest_level =
        malloc(num_particles * sizeof(int64));
    octree->sorted_indices = malloc(num_particles * sizeof(int));
    if (!octree->particle_morton_indices_deepest_level || !octree->sorted_indices)
    {
        error_status = WRAP_RAISE_ERROR(
            GRAV_MEMORY_ERROR,
            "Failed to allocate memory for Morton indices and sorted indices"
        );
        goto err_indices_memory_alloc;
    }

    // Internal nodes
    // int allocated_internal_nodes = num_particles * 2 / max_num_particles_per_leaf;
    int allocated_internal_nodes = num_particles;

    octree->tree_num_particles = malloc(allocated_internal_nodes * sizeof(int));
    octree->tree_num_internal_children = malloc(allocated_internal_nodes * sizeof(int));
    octree->tree_first_internal_children_idx =
        malloc(allocated_internal_nodes * sizeof(int));
    octree->tree_first_particle_sorted_idx =
        malloc(allocated_internal_nodes * sizeof(int));
    octree->tree_mass = malloc(allocated_internal_nodes * sizeof(double));
    octree->tree_center_of_mass_x = malloc(allocated_internal_nodes * sizeof(double));
    octree->tree_center_of_mass_y = malloc(allocated_internal_nodes * sizeof(double));
    octree->tree_center_of_mass_z = malloc(allocated_internal_nodes * sizeof(double));
    if (!octree->tree_num_particles || !octree->tree_num_internal_children ||
        !octree->tree_first_internal_children_idx ||
        !octree->tree_first_particle_sorted_idx || !octree->tree_mass ||
        !octree->tree_center_of_mass_x || !octree->tree_center_of_mass_y ||
        !octree->tree_center_of_mass_z)
    {
        error_status = WRAP_RAISE_ERROR(
            GRAV_MEMORY_ERROR, "Failed to allocate memory for internal nodes"
        );
        goto err_internal_nodes_memory_alloc;
    }

    /* Initialize the sorted indices */
    for (int i = 0; i < num_particles; i++)
    {
        octree->sorted_indices[i] = i;
    }

    /* Compute the 3D Morton indices at level 21 */
    compute_3d_particle_morton_indices_deepest_level(
        octree->particle_morton_indices_deepest_level,
        num_particles,
        x,
        center,
        octree->box_width
    );

    /* Sort the particles based on their Morton indices */
    error_status = WRAP_TRACEBACK(radix_sort_particles_morton_index(
        octree->particle_morton_indices_deepest_level,
        octree->sorted_indices,
        num_particles,
        MORTON_MAX_LEVEL
    ));
    if (error_status.return_code != GRAV_SUCCESS)
    {
        goto err_radix_sort;
    }

    /* Construct the octree */
    error_status = WRAP_TRACEBACK(helper_construct_octree(
        octree,
        allocated_internal_nodes,
        max_num_particles_per_leaf,
        num_particles,
        x,
        m
    ));
    if (error_status.return_code != GRAV_SUCCESS)
    {
        goto err_construct_octree;
    }

    return make_success_error_status();

err_construct_octree:
err_radix_sort:
err_internal_nodes_memory_alloc:
err_indices_memory_alloc:
    free_linear_octree(octree);

    return error_status;
}

void free_linear_octree(LinearOctree *restrict octree)
{
    free(octree->particle_morton_indices_deepest_level);
    free(octree->sorted_indices);
    free(octree->tree_num_particles);
    free(octree->tree_num_internal_children);
    free(octree->tree_first_particle_sorted_idx);
    free(octree->tree_first_internal_children_idx);
    free(octree->tree_mass);
    free(octree->tree_center_of_mass_x);
    free(octree->tree_center_of_mass_y);
    free(octree->tree_center_of_mass_z);
}

bool linear_octree_check_if_included(
    const int64 morton_index_i, const int64 morton_index_j, const int level
)
{
    return (morton_index_i >> (3 * (MORTON_MAX_LEVEL - level))) ==
           (morton_index_j >> (3 * (MORTON_MAX_LEVEL - level)));
}

Figure 2: Morton curve for Morton index 0 to 7. This is the full curve for level 1, or the first \(\frac{1}{8}\) of the full curve at level 2, etc.

Here, we provide a detailed description on constructing a static linear octree using only linear arrays and Morton indices. To build a linear octree, we utilize the idea of Morton code (also known as Z-order or Morton space filling curve). Figure 2 shows a Morton curve at level 1 of the tree. The Morton index is calculated by encoding the spatial coordinate in binary format. For example, at level 1 we have \(x, y, z \in \{0, 1\}\). For \(x = 0, y = 0, z = 1\), we have the Morton index \(\underset{z}{1}\underset{y}{0}\underset{x}{0} \textnormal{ (binary)} = 4\). For \(x = 1, y = 1, z = 0\), we have the Morton index \(\underset{z}{0}\underset{y}{1}\underset{x}{1} \textnormal{ (binary)} = 3\). As we traverse into deeper level, we stack another three bits after the Morton index for each level. For example, a particle has a local Morton index 5 at level 1 and local Morton index 3 at level 2. The full Morton index at level 2 is obtained by

\[\begin{equation} %\label{} \overset{5}{\overbrace{\underset{z}{1}\underset{y}{0}\underset{x}{1}}} \overset{3}{\overbrace{\underset{z}{0}\underset{y}{1}\underset{x}{1}}} \textnormal{ (binary)} = 43. \end{equation}\]

Unlike a tree data structure, there is a limit for the depth of the octree. For 64-bit integer, there can only be \(\lfloor64 / 3 \rfloor = 21\) levels (excluding level 0) as it takes three bits for each level. This could become an issue for exascale simulations, but this could be resolved by using integers with more bits.

The Morton index could be calculated easily using bit-shift operations and loops. In our project, we fixed the Morton indices to 64-bit integers by default and uses magic numbers to compute the Morton indices at level 21 directly without a loop. The magic numbers are generated using the script by ². Morton index on each level can then be retrieved with bit-shift operations.

Figure 3: Graphical illustration of linear octree. On the top, there are multiple aligned arrays. Each index represent one tree node, and each array represent a piece of information stored by the tree node. On below, we have the sorted Morton indices and the particle indices sorted with Morton indices. Since they are sorted, only the first index and the number of particles are needed to obtain the full particle list of each tree node. Tree node 0 is the root node with \(N\) particles. Tree node 1 and 2 are the proper successor of the root node, with 4 and 8 particles respectively.

Now, with the knowledge of Morton index, we can construct a linear octree building algorithm. The tree is represented with multiple aligned arrays, where each index to the arrays corresponds to one internal node. An illustration of the linear octree is provided in figure 3.

1. Compute the Morton index for all particles at the deepest level (level 21 for 64-bit integers)
2. Sort the Morton index (e.g. radix sort) along with the particle indices, so that we have an array of sorted Morton indices, and particle indices that corresponds to each Morton index.
3. For each particle, starts from the root node,

   • Check if there are any particles in the corresponding suboctant of the current node. This can be done with binary search of the suboctant's Morton index at that level. (The binary search also tells us how many particles are in each child node.)

     • If not, instantiate a new child node for that suboctant by assigning a tree index. Backpropogate the mass and coordinate all the way to the root node.
     • Otherwise, traverse deeper into the child node.

Side note: We do not know beforehand how many internal nodes there will be. Therefore, the arrays might become full during construction. By using a dynamic array (one that doubles in size whenever it is full), we can build an octree with as many internal nodes as needed.

Tree traversal

Source code (Click to expand)

/**
 * \file acceleration_barnes_hut.c
 * \brief Implementation of Barnes-Hut algorithm
 *
 * \author Ching-Yin Ng
 */

#include <math.h>
#include <stdio.h>

#ifdef USE_OPENMP
#include <omp.h>
#endif

#include "acceleration.h"
#include "linear_octree.h"

/**
 * \brief Helper function to compute acceleration
 *
 * \param[out] a Array of acceleration vectors to be modified
 * \param[in] system Pointer to the gravitational system
 * \param[in] acceleration_param Pointer to the acceleration parameters
 * \param[in] octree Pointer to the linear octree
 */
static void helper_compute_acceleration(
    double *restrict a,
    const System *restrict system,
    const AccelerationParam *restrict acceleration_param,
    const LinearOctree *restrict octree
);

ErrorStatus acceleration_barnes_hut(
    double *restrict a,
    const System *restrict system,
    const AccelerationParam *restrict acceleration_param
)
{
    ErrorStatus error_status;

    /* Empty the input array */
    const int num_particles = system->num_particles;
    for (int i = 0; i < num_particles; i++)
    {
        a[i * 3 + 0] = 0.0;
        a[i * 3 + 1] = 0.0;
        a[i * 3 + 2] = 0.0;
    }

    /* Construct octree */
    LinearOctree octree = get_new_linear_octree();
    error_status = WRAP_TRACEBACK(
        construct_octree(&octree, system, acceleration_param, NULL, -1.0)
    );
    if (error_status.return_code != GRAV_SUCCESS)
    {
        return error_status;
    }

    /* Compute acceleration */
    helper_compute_acceleration(a, system, acceleration_param, &octree);

    /* Free memory */
    free_linear_octree(&octree);

    return make_success_error_status();
}

static void helper_compute_acceleration(
    double *restrict a,
    const System *restrict system,
    const AccelerationParam *restrict acceleration_param,
    const LinearOctree *restrict octree
)
{
    typedef struct Stack
    {
        int node;
        int processed_children;
        struct Stack *parent;
    } Stack;

    /* Declare variables */
    const int num_particles = system->num_particles;
    const double *restrict x = system->x;
    const double *restrict m = system->m;
    const double G = system->G;
    const double softening_length = acceleration_param->softening_length;
    const double softening_length_squared = softening_length * softening_length;
    const double opening_angle = acceleration_param->opening_angle;
    const double opening_angle_squared = opening_angle * opening_angle;

    const double box_length = octree->box_width * 2.0;
    const int64 *restrict particle_morton_indices_deepest_level =
        octree->particle_morton_indices_deepest_level;
    const int *restrict sorted_indices = octree->sorted_indices;
    const int *restrict tree_num_particles = octree->tree_num_particles;
    const int *restrict tree_num_internal_children = octree->tree_num_internal_children;
    const int *restrict tree_first_particle_sorted_idx =
        octree->tree_first_particle_sorted_idx;
    const int *restrict tree_first_internal_children_idx =
        octree->tree_first_internal_children_idx;
    const double *restrict tree_mass = octree->tree_mass;
    const double *restrict tree_center_of_mass_x = octree->tree_center_of_mass_x;
    const double *restrict tree_center_of_mass_y = octree->tree_center_of_mass_y;
    const double *restrict tree_center_of_mass_z = octree->tree_center_of_mass_z;

#ifdef USE_OPENMP
#pragma omp parallel for
#endif
    for (int i = 0; i < num_particles; i++)
    {
        const int idx_i = sorted_indices[i]; // For coalesced memory access
        const int64 morton_index_i = particle_morton_indices_deepest_level[idx_i];
        const double x_i[3] = {x[idx_i * 3 + 0], x[idx_i * 3 + 1], x[idx_i * 3 + 2]};

        Stack stack[MORTON_MAX_LEVEL + 1];
        Stack *current_stack = &(stack[0]);
        current_stack->processed_children = -1;
        current_stack->node = 0;
        current_stack->parent = NULL;
        double acceleration[3] = {0.0, 0.0, 0.0};

        int level = 1;

        /* Tree walk */
        while (true)
        {
            const int current_node = current_stack->node;
            for (int j = (current_stack->processed_children) + 1;
                 j < tree_num_internal_children[current_node];
                 j++)
            {
                const int child_j = tree_first_internal_children_idx[current_node] + j;
                const int num_children_j = tree_num_internal_children[child_j];
                const int start_idx_j = tree_first_particle_sorted_idx[child_j];

                // If object i is included, then we need to traverse deeper
                const bool is_included = linear_octree_check_if_included(
                    morton_index_i,
                    particle_morton_indices_deepest_level[sorted_indices[start_idx_j]],
                    level
                );

                // Check Barnes-Hut criteria
                if (!is_included)
                {
                    const double R[3] = {
                        x_i[0] - tree_center_of_mass_x[child_j],
                        x_i[1] - tree_center_of_mass_y[child_j],
                        x_i[2] - tree_center_of_mass_z[child_j]
                    };
                    const double box_length_j = box_length / (2 << level);
                    const double norm_square = R[0] * R[0] + R[1] * R[1] + R[2] * R[2];

                    // Check if box_length_j / norm < opening_angle
                    // Use squared values to avoid sqrt
                    if ((box_length_j * box_length_j) <
                        opening_angle_squared * norm_square)
                    {
                        const double R_norm =
                            sqrt(norm_square + softening_length_squared);

                        const double temp_value =
                            G * tree_mass[child_j] / (R_norm * R_norm * R_norm);
                        acceleration[0] -= temp_value * R[0];
                        acceleration[1] -= temp_value * R[1];
                        acceleration[2] -= temp_value * R[2];

                        current_stack->processed_children = j;
                        continue;
                    }
                }

                /* Traverse deeper */

                /* Leaf node */
                if (num_children_j <= 0)
                {
                    const int num_particles_j = tree_num_particles[child_j];
                    for (int k = 0; k < num_particles_j; k++)
                    {
                        const int idx_j = sorted_indices[start_idx_j + k];
                        if (idx_i == idx_j)
                        {
                            continue;
                        }

                        // Calculate \vec{R} and its norm
                        const double R[3] = {
                            x_i[0] - x[idx_j * 3 + 0],
                            x_i[1] - x[idx_j * 3 + 1],
                            x_i[2] - x[idx_j * 3 + 2]
                        };
                        const double R_norm = sqrt(
                            R[0] * R[0] + R[1] * R[1] + R[2] * R[2] +
                            softening_length_squared
                        );

                        // Calculate the acceleration
                        const double temp_value =
                            G * m[idx_j] / (R_norm * R_norm * R_norm);
                        acceleration[0] -= temp_value * R[0];
                        acceleration[1] -= temp_value * R[1];
                        acceleration[2] -= temp_value * R[2];
                    }

                    current_stack->processed_children = j;
                    continue;
                }

                /* Internal node */
                else
                {
                    Stack *new_item = &(stack[level + 1]);
                    new_item->node = child_j;
                    new_item->processed_children = -1;
                    new_item->parent = current_stack;

                    current_stack = new_item;
                    level++;
                    break;
                }
            }

            if ((current_stack->processed_children + 1) >=
                tree_num_internal_children[current_stack->node])
            {
                Stack *parent_stack = current_stack->parent;
                if (!parent_stack)
                {
                    break;
                }

                current_stack = parent_stack;
                current_stack->processed_children += 1;
                level--;
            }
        }

        a[idx_i * 3 + 0] = acceleration[0];
        a[idx_i * 3 + 1] = acceleration[1];
        a[idx_i * 3 + 2] = acceleration[2];
    }
}

To compute the acceleration, we use a stack to traverse the tree recursively:

1. Push the root node to the stack.
2. While the stack is not empty:
   • 2.1 Pop the top node from the stack.
   • 2.2 If the node is a leaf node, compute the acceleration directly.
   • 2.3 If the node is not a leaf node, check if it passes the opening angle criterion. If yes, compute the acceleration using the center of mass of the node. Otherwise, push all child nodes to the stack.

Danger

We need to check whether the current node is included in the branch to avoid self-interaction. This can be done by a simple check of the Morton index.

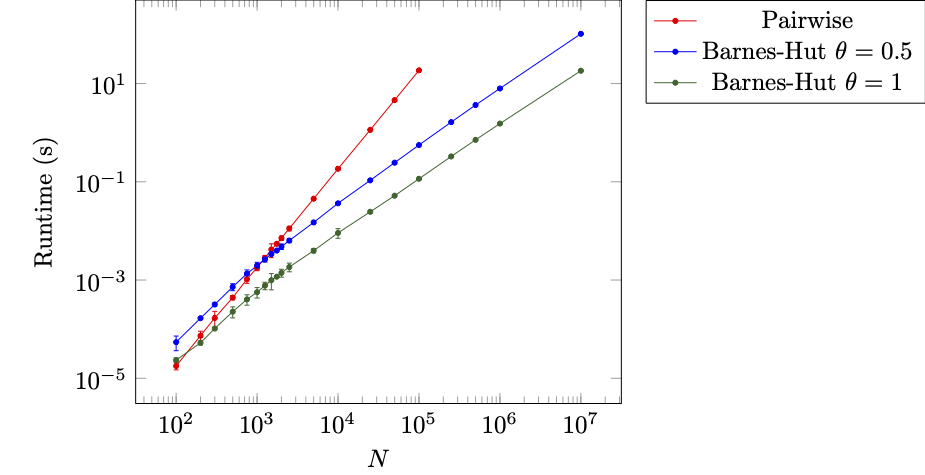

Benchmark

Here we provide a simple benchmark of the Barnes-Hut algorithm compared to the brute-force algorithm. It was done on Macbook Air M1. The brute-force algorithm spent 18.6 seconds on \(N = 10^5\), while the Barnes-Hut algorithm with \(\theta = 1\) and \(\theta = 0.5\) spent \(7.94\) s on \(N = 10^6\) and \(18.2\) s on \(N = 10^7\) respectively. This shows that Barnes-Hut algorithm could handle 10-100 times more particles than the brute force algorithm.

(For the benchmark, the particles are uniformly distributed where \(\{x, y, z\} \sim U(-1, 1)\))

---

1. Josh Barnes and Piet Hut. A hierarchical \(O\)(\(N\) $\log $ \(N\)) force-calculation algorithm. Nature, 324(6096):446–449, December 1986. URL: https://www.nature.com/articles/324446a0 (visited on 2025-01-19), doi:10.1038/324446a0. ↩

2. Gabriel (https://stackoverflow.com/users/293195/gabriel). How to compute a 3d morton number (interleave the bits of 3 ints). Stack Overflow. version: 2021-09-18. URL: https://stackoverflow.com/a/18528775, arXiv:https://stackoverflow.com/a/18528775. ↩

Comments
